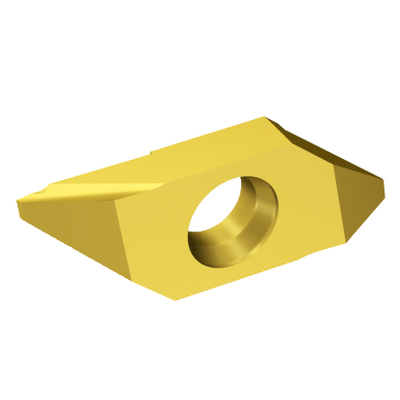

Generic representation
Package quantity: 5
ISO: MABL 3 005 1025
Material Id: 5735302
EAN: 12001275
ANSI: MABL 3 005 1025
Start values (KAPR 93 deg )
P2.1.Z.AN, Hardness: 175 HB
p
ap 1.4 mm (0.1 - 3)
fn 0.05 mm/r (0.01 - 0.09)
hex 0.05 mm/r (0.01 - 0.09)
vc 165 m/min (200 - 145)
M1.0.Z.AQ, Hardness: 200 HB
m
ap 1.4 mm (0.1 - 3)
fn 0.05 mm/r (0.01 - 0.09)
hex 0.05 mm/r (0.01 - 0.09)
vc 145 m/min (180 - 130)
S2.0.Z.AG, Hardness: 350 HB
s
ap 0.7 mm (0.05 - 1.5)
fn 0.03 mm/r (0.01 - 0.05)
hex 0.02 mm/r (0.01 - 0.04)
vc 45 m/min (50 - 38)
Technical illustrations
Product data
Workpiece material(s)(TMC1ISO)
Operation type
(CTPT)
finishing
Insert mounting style code (metric)(IFS)
Partly cylindrical, 40-60 deg countersink on one or two sides
Insert size and shape
(CUTINT_SIZESHAPE)
CoroCut XS -size 3L
Insert seat size code imperial view(SSC_N)
3
Depth of cut maximum
(APMX)
4 mm
Cutting edge count(CEDC)
2
Corner radius
(RE)
0.04 mm
Major cutting edge angle(KRINS)
59 °
Hand
(HAND)
Left
Grade
(GRADE)
1025
Substrate(SUBSTRATE)
HC
Coating(COATING)
PVD TiAlN+TiN
Insert thickness(S)
3.175 mm
Clearance angle major(AN)
6 °
Weight of item(WT)
0.0041 kg
Insert seat - metric(SSC_M)
3
Release date(ValFrom20)
8/9/04
Release pack id(RELEASEPACK)
04.2
