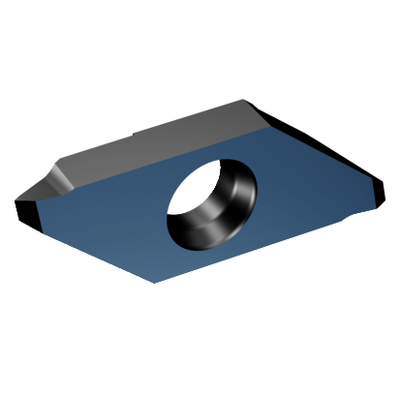

Generic representation
Available
Package quantity: 5
ISO: MATR 3-MM01F-125-A 1105
Material Id: 6765588
EAN: 26765588
ANSI: MATR 3-MM01F-125-A 1105
Start values
P2.1.Z.AN, Hardness: 175 HB
P
ap 0.74 mm
nap7
vc 160 m/min
M1.0.Z.AQ, Hardness: 200 HB
M
ap 0.74 mm
nap7
vc 130 m/min
N1.3.C.AG, Hardness: 90 HB
N
ap 0.74 mm
nap7
vc 1900 m/min
S2.0.Z.AG, Hardness: 350 HB
S
ap 0.74 mm
nap7
vc 60 m/min

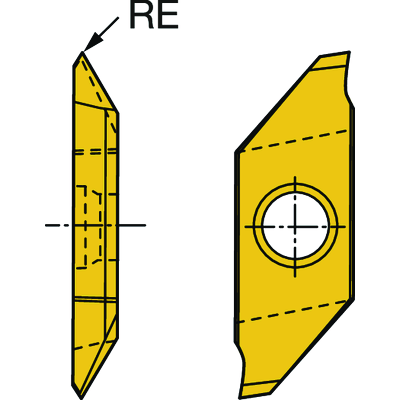

Technical illustrations
Technical illustrations
Product data
Workpiece material(s)(TMC1ISO)
P
M
N
S
Thread form(THFT)
M (Metric 60°)
Standard number(STDNO_1)
ISO 965-1998
Thread type(TTP)
external
Thread pitch(TP)
1.25 mm
Thread profile type(TPT)
full profile
Tooth count(NT)
1
Thread tolerance class(TCTR)
IT 6
Theoretical thread height(HA)
0.9 mm
Thread height difference(HB)
0.14 mm
Profile distance ex(PDX)
0.38 mm
Profile distance ey(PDY)
0 mm
Insert mounting style code (metric)(IFS)
Partly cylindrical, 40-60 deg countersink on one or two sides
Fixing hole diameter(D1)
4.8 mm
Insert size and shape
(CUTINT_SIZESHAPE)
CoroCut XS -size 3R
Cutting edge count(CEDC)
2
Corner radius
(RE)
0.15 mm
Hand
(HAND)
Right
Grade
(GRADE)
1105
Substrate(SUBSTRATE)
HC
Coating(COATING)
PVD TiAlN
Insert thickness(S)
3.175 mm
Weight of item(WT)
0.006 kg
Insert seat - metric(SSC_M)
3
Insert seat size code imperial view(SSC_N)
3
Release date(ValFrom20)
12/10/14
Release pack id(RELEASEPACK)
15.1
