Generic representation
Available
Package quantity: 1
ISO: MB-A16-20-09
Material Id: 5735535
EAN: 12067661
ANSI: MB-A16-20-09

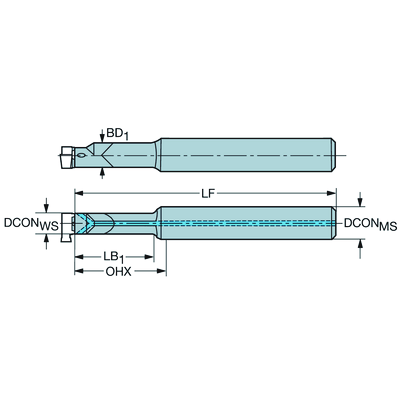

Technical illustrations
Generic representation
Product data
Connection - machine side(ADINTMS)
Cylindrical shank w/ 3 flats -metric: 16
Connection - workpiece side
(ADINTWS)
CoroCut MB -size 09
Minimum overhang(OHN)
20 mm
Maximum overhang
(OHX)
20 mm
Hand
(HAND)
Neutral
Coolant entry style(CNSC)
axial concentric entry
Coolant exit style(CXSC)
axial inclined exit
Coolant pressure(CP)
10 bar
Connection diameter machine side(DCONMS)
16 mm
Connection diameter workpiece side(DCONWS)
9 mm
Shank height(H)
14 mm
Functional length(LF_1)
94.8 mm
Functional width(WF_1)
0 mm
Functional height(HF_1)
0 mm
Body diameter(BD_1)
9.5 mm
Body length(LB)
14.7 mm
Overall length(OAL)
94.8 mm
Body material(BMC)
Steel
Weight of item(WT)
0.1306 kg
Release date(ValFrom20)
8/15/05
Release pack id(RELEASEPACK)
05.2
