Generic representation
Available within a week
Package quantity: 1
ISO: MBG-2525-09L
Material Id: 6010169
EAN: 26010169
ANSI: MBG-2525-09L

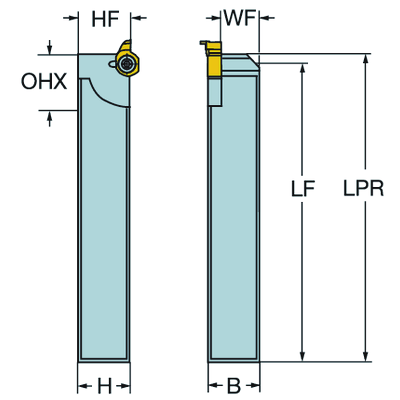

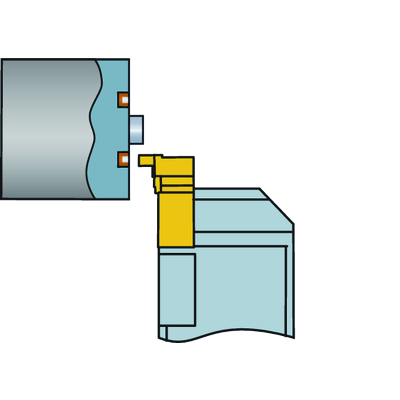

Technical illustrations
Generic representation
Product data
Connection - machine side(ADINTMS)
Rectangular shank -metric: 25 x 25
Connection - workpiece side
(ADINTWS)
CoroCut MB -size 09
Maximum overhang
(OHX)
20 mm
Hand
(HAND)
Left
Coolant entry style(CNSC)
without coolant entry
Coolant exit style(CXSC)
no coolant exit
Connection diameter workpiece side(DCONWS)
9 mm
Shank width(B)
25 mm
Shank height(H)
25 mm
Protruding length(LPR)
150 mm
Functional length(LF_1)
145.5 mm
Functional width(WF_1)
28.1 mm
Functional height(HF_1)
25 mm
Overall length(OAL)
150 mm
Torque(TQ)
3 Nm
Body material(BMC)
Steel
Weight of item(WT)
0.752 kg
Release date(ValFrom20)
2/22/11
Release pack id(RELEASEPACK)
11.1
