New

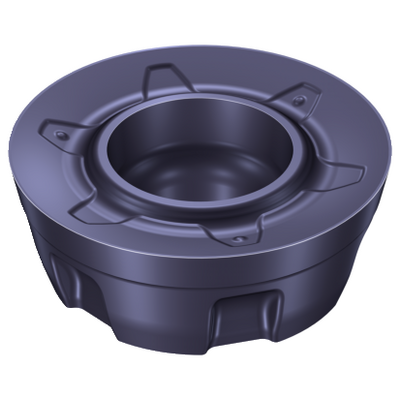

Generic representation
Available
Package quantity: 10
ISO: MR20-1654E-L40 1230
Material Id: 8809721
EAN: 7323228782705
ANSI: MR20-1654E-L40 1230
Start values (Depth of cut 4 mm )
P2.1.Z.AN, Hardness: 175 HB
P
fz 0.12 mm (0.06 - 0.23)
hex 0.1 mm (0.05 - 0.2)
vc 285 m/min (325 - 215)

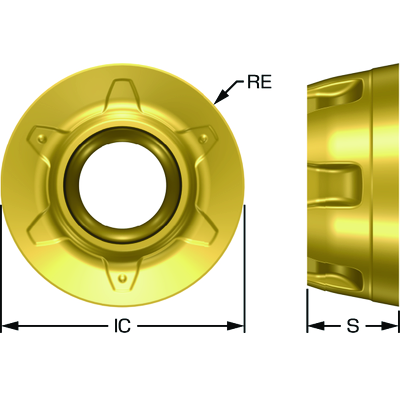

Technical illustrations
Technical illustrations
Product data
Workpiece material(s)(TMC1ISO)
P
M
Chip breaker(CBMD)
L40
Operation type
(CTPT)
light
Insert mounting style code (metric)(IFS)
Partly cylindrical, 40-60 deg countersink on one or two sides
Fixing hole diameter(D1)
5.7 mm
Insert size and shape
(CUTINT_SIZESHAPE)
CoroMill MR20 -16
Cutting edge count(CEDC)
6
Inscribed circle diameter(IC)
16 mm
Insert shape code(SC)
Round
Depth of cut maximum
(APMX)
4 mm
Corner radius
(RE)
8 mm
Face land width(BN)
0.12 mm
Face land angle(GB)
2 °
Insert rake angle(GAN)
17 °
Hand
(HAND)
Neutral
Grade
(GRADE)
1230
Substrate(SUBSTRATE)
HC
Coating(COATING)
PVD TiAlSiN
Insert thickness(S)
5.4 mm
Weight of item(WT)
0.0104 kg
Insert seat - metric(SSC_M)
16
Insert seat size code imperial view(SSC_N)
16
Release date(ValFrom20)
2/22/26
Release pack id(RELEASEPACK)
26.1
