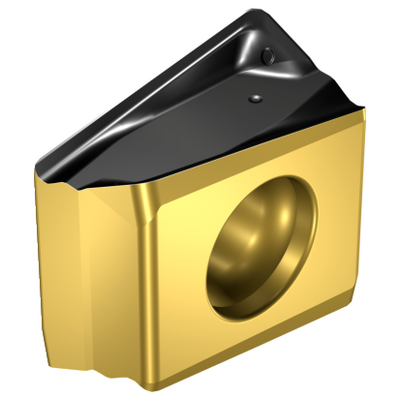

Generic representation
List price: 35.35 EUR
Available
Package quantity: 10
ISO: MS40-090408E-M40 3330
Material Id: 8637657
EAN: 7323228295724
ANSI: MS40-090408E-M40 3330
Start values (KAPR 90 deg )
K2.2.C.UT, Hardness: 245 HB
K
fz 0.12 mm (0.07 - 0.22)
hex 0.12 mm (0.07 - 0.22)
vc 265 m/min (270 - 250)
Technical illustrations
Technical illustrations
Product data
Workpiece material(s)(TMC1ISO)
K
Chip breaker(CBMD)
M40
Operation type
(CTPT)
pre-machining with demand on surface
Insert mounting style code (metric)(IFS)
Partly cylindrical, 40-60 deg countersink on one or two sides
Insert size and shape
(CUTINT_SIZESHAPE)
CoroMill MS40 -0904
Cutting edge count(CEDC)
4
Insert width(W1)
4.5 mm
Insert shape code(SC)
Rectangular
Cutting edge effective length(LE)
8 mm
Depth of cut maximum
(APMX)
8 mm
Wiper edge length(BS)
1.1 mm
Corner radius
(RE)
0.8 mm
Major cutting edge angle(KRINS)
90 °
Face land width(BN)
0.1 mm
Face land angle(GB)
10 °
Insert rake angle(GAN)
35 °
Hand
(HAND)
Right
Grade
(GRADE)
3330
Substrate(SUBSTRATE)
HC
Coating(COATING)
CVD TiCN+Al2O3+TiN
Insert thickness(S)
8.53 mm
Weight of item(WT)
0.003 kg
Insert seat - metric(SSC_M)
09
Insert seat size code imperial view(SSC_N)
09
Release date(ValFrom20)
2/24/25
Release pack id(RELEASEPACK)
25.1
