N331.1A-08 45 08M-KM1220
N331.1A-08 45 08M-KM1220
CoroMill® 331, insert for side and face millingchevron_right
New

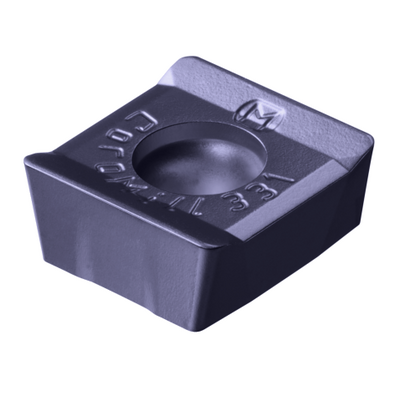

Generic representation
List price: 16.75 EUR
Available within a week
Package quantity: 10
ISO: N331.1A-08 45 08M-KM1220
Material Id: 8827679
EAN: 7323228849583
ANSI: N331.1A-08 45 08M-KM1220
Start values (Hex/Fz conv. factor 1.2 )
K2.2.C.UT, Hardness: 245 HB
K
fz 0.16 mm (0.06 - 0.3)
hex 0.13 mm (0.05 - 0.25)
vc 235 m/min (250 - 220)
Technical illustrations
Technical illustrations
Product data
Workpiece material(s)(TMC1ISO)
K
Chip breaker(CBMD)
KM
Operation type
(CTPT)
pre-machining with demand on surface
Insert mounting style code (metric)(IFS)
Partly cylindrical, 40-60 deg countersink on one or two sides
Fixing hole diameter(D1)
3.6 mm
Insert size and shape
(CUTINT_SIZESHAPE)
CoroMill 331 -08
Cutting edge count(CEDC)
4
Insert width(W1)
9.5 mm
Insert shape code(SC)
Rectangular
Cutting edge effective length(LE)
7.7 mm
Depth of cut maximum
(APMX)
7.7 mm
Wiper edge length(BS)
1.2 mm
Corner radius
(RE)
0.8 mm
Major cutting edge angle(KRINS)
90 °
Hand
(HAND)
Neutral
Grade
(GRADE)
1220
Substrate(SUBSTRATE)
HC
Coating(COATING)
PVD TiAlSiN
Insert thickness(S)
4.45 mm
Weight of item(WT)
0.0031 kg
Insert seat - metric(SSC_M)
08
Insert seat size code imperial view(SSC_N)
08
Release date(ValFrom20)
9/24/25
Release pack id(RELEASEPACK)
25.2
