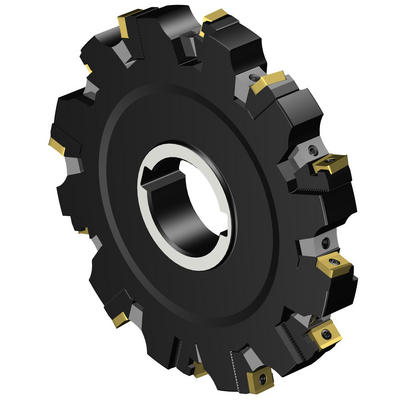

N331.32-203T51RM0.925
N331.32-203T51RM0.925
Specific representation
Available
Package quantity: 1
ISO: N331.32-203T51RM0.925
Material Id: 6448880
EAN: 26448880
ANSI: N331.32-203T51RM0.925
Technical illustrations
Technical illustrations
Product data
Cutting width
(CW)
23.5 mm
Minimum cutting width(CWN)
23.5 mm
Maximum cutting width(CWX)
26.5 mm
Premachined slot width(PSW)
0 mm
Cutting diameter
(DC)
203.2 mm
Cutting depth maximum
(CDX)
66.4972 mm
Clamping type code(MTP)
clamp with screw through hole
Insert type(CUTINT_MASTER)
CoroMill 331 -size 14 (N/R331.1A-14RE0.20-1.54)
Peripheral effective cutting edge count(ZEFP)
6
Connection - machine side(ADINTMS)
Arbor -ISO 240 -2 key drives -inch: 2
Hand
(HAND)
Neutral
Coolant entry style(CNSC)
without coolant entry
Connection diameter machine side(DCONMS)
50.8 mm
Hub diameter(DHUB)
67.9958 mm
Hub thickness(THUB)
27.5082 mm
Drive count(DRVCT)
2
Functional length(LF)
25.5016 mm
Minimum functional length(LFN)
25.5016 mm
Torque(TQ)
3 Nm
Rotational speed maximum(RPMX)
8,000 1/min
Weight of item(WT)
7.6 kg
Overall length(OAL)
27.5082 mm
Release date(ValFrom20)
9/24/13
Release pack id(RELEASEPACK)
13.2
