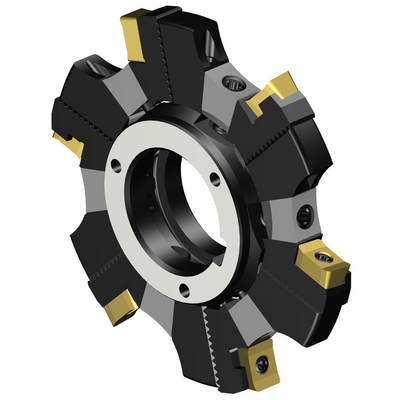

N331.32C-080T25DM
N331.32C-080T25DM
Specific representation
Available
Package quantity: 1
ISO: N331.32C-080T25DM
Material Id: 7295426
EAN: 7323221988081
ANSI: N331.32C-080T25DM
Technical illustrations
Technical illustrations
Product data
Cutting width
(CW)
8 mm
Minimum cutting width(CWN)
8 mm
Maximum cutting width(CWX)
10 mm
Premachined slot width(PSW)
0 mm
Cutting diameter
(DC)
80 mm
Cutting depth maximum
(CDX)
19.5072 mm
Clamping type code(MTP)
clamp with screw through hole
Insert type(CUTINT_MASTER)
CoroMill 331 -size 05 (N/R331.1A-05RE0.20-1.54)
Peripheral effective cutting edge count(ZEFP)
3
Connection - machine side(ADINTMS)
Arbor -ISO 240 -1 key drive -inch: 1
Hand
(HAND)
Neutral
Coolant entry style(CNSC)
axial concentric entry
Coolant pressure(CP)
80 bar
Connection diameter machine side(DCONMS)
25.4 mm
Hub diameter(DHUB)
39 mm
Hub thickness(THUB)
16 mm
Drive count(DRVCT)
1
Functional length(LF)
12 mm
Minimum functional length(LFN)
12 mm
Torque(TQ)
1.2 Nm
Rotational speed maximum(RPMX)
15,000 1/min
Weight of item(WT)
0.196 kg
Overall length(OAL)
16 mm
Release date(ValFrom20)
9/25/18
Release pack id(RELEASEPACK)
18.2
