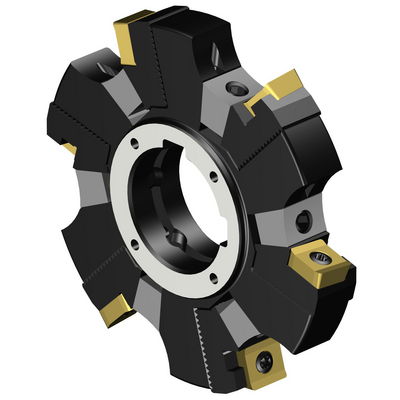

N331.32C-100S32KM
N331.32C-100S32KM
Specific representation
Available within a week
Package quantity: 1
ISO: N331.32C-100S32KM
Material Id: 7295376
EAN: 7323221987589
ANSI: N331.32C-100S32KM
Technical illustrations
Technical illustrations
Product data
Cutting width
(CW)
15 mm
Minimum cutting width(CWN)
15 mm
Maximum cutting width(CWX)
17.5 mm
Premachined slot width(PSW)
0 mm
Cutting diameter
(DC)
100 mm
Cutting depth maximum
(CDX)
25.5 mm
Clamping type code(MTP)
clamp with screw through hole
Insert type(CUTINT_MASTER)
CoroMill 331 -size 11 (N/R331.1A-11RE0.20-1.54)
Peripheral effective cutting edge count(ZEFP)
3
Connection - machine side(ADINTMS)
Arbor -ISO 240 -1 key drive -metric: 32
Hand
(HAND)
Neutral
Coolant entry style(CNSC)
axial concentric entry
Coolant pressure(CP)
80 bar
Connection diameter machine side(DCONMS)
32 mm
Hub diameter(DHUB)
47 mm
Hub thickness(THUB)
18.5 mm
Drive count(DRVCT)
1
Functional length(LF)
16.75 mm
Minimum functional length(LFN)
16.75 mm
Torque(TQ)
3 Nm
Rotational speed maximum(RPMX)
14,000 1/min
Weight of item(WT)
0.705 kg
Overall length(OAL)
18.5 mm
Release date(ValFrom20)
9/25/18
Release pack id(RELEASEPACK)
18.2
