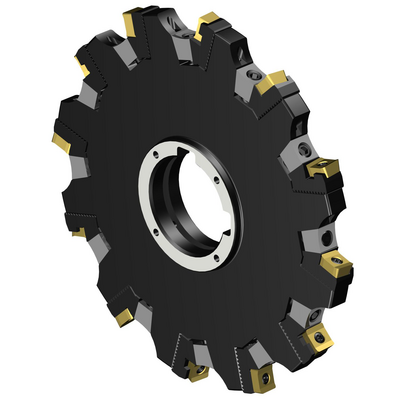

N331.32C-152T38EM
N331.32C-152T38EM
Specific representation
Available
Package quantity: 1
ISO: N331.32C-152T38EM
Material Id: 7295433
EAN: 7323221988159
ANSI: N331.32C-152T38EM
Technical illustrations
Technical illustrations
Product data
Cutting width
(CW)
10 mm
Minimum cutting width(CWN)
10 mm
Maximum cutting width(CWX)
12 mm
Premachined slot width(PSW)
0 mm
Cutting diameter
(DC)
152.4 mm
Cutting depth maximum
(CDX)
48.9966 mm
Clamping type code(MTP)
clamp with screw through hole
Insert type(CUTINT_MASTER)
CoroMill 331 -size 08 (N/R331.1A-08RE0.20-1.54)
Peripheral effective cutting edge count(ZEFP)
6
Connection - machine side(ADINTMS)
Arbor -ISO 240 -2 key drives -inch: 1 1/2
Hand
(HAND)
Neutral
Coolant entry style(CNSC)
axial concentric entry
Coolant pressure(CP)
80 bar
Connection diameter machine side(DCONMS)
38.1 mm
Hub diameter(DHUB)
51.9938 mm
Hub thickness(THUB)
16.002 mm
Drive count(DRVCT)
2
Functional length(LF)
13.0048 mm
Minimum functional length(LFN)
13.0048 mm
Torque(TQ)
1.2 Nm
Rotational speed maximum(RPMX)
12,400 1/min
Weight of item(WT)
0.968 kg
Overall length(OAL)
16.002 mm
Release date(ValFrom20)
9/25/18
Release pack id(RELEASEPACK)
18.2
