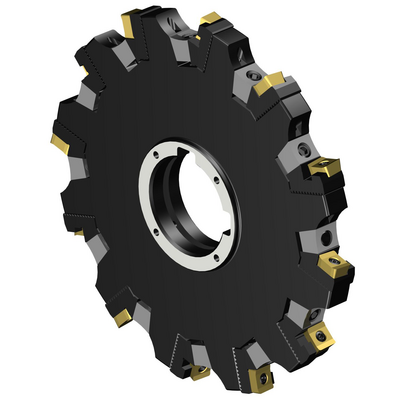

N331.32C-152T38FM
N331.32C-152T38FM
Specific representation
Available
Package quantity: 1
ISO: N331.32C-152T38FM
Material Id: 7295437
EAN: 7323221988197
ANSI: N331.32C-152T38FM
Technical illustrations
Technical illustrations
Product data
Cutting width
(CW)
0.4724 in
Minimum cutting width(CWN)
0.4724 in
Maximum cutting width(CWX)
0.5906 in
Premachined slot width(PSW)
0 in
Cutting diameter
(DC)
6 in
Cutting depth maximum
(CDX)
1.929 in
Clamping type code(MTP)
clamp with screw through hole
Insert type(CUTINT_MASTER)
CoroMill 331 -size 08 (N/R331.1A-08RE0.20-1.54)
Peripheral effective cutting edge count(ZEFP)
6
Connection - machine side(ADINTMS)
Arbor -ISO 240 -2 key drives -inch: 1 1/2
Hand
(HAND)
Neutral
Coolant entry style(CNSC)
axial concentric entry
Coolant pressure(CP)
1,160 PSI
Connection diameter machine side(DCONMS)
1.5 in
Hub diameter(DHUB)
2.047 in
Hub thickness(THUB)
0.63 in
Drive count(DRVCT)
2
Functional length(LF)
0.551 in
Minimum functional length(LFN)
0.551 in
Torque(TQ)
0.8851 ftlbf
Rotational speed maximum(RPMX)
12,400 1/min
Weight of item(WT)
2.586 lb
Overall length(OAL)
0.63 in
Release date(ValFrom20)
9/25/18
Release pack id(RELEASEPACK)
18.2
