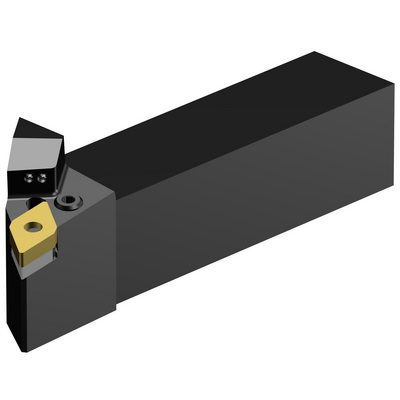

Specific representation
Available
Package quantity: 1
ISO: PDJNR 20 4DHP
Material Id: 6188543
EAN: 26188543
ANSI: PDJNR 20 4DHP
Technical illustrations
Technical illustrations
Product data
Tool cutting edge angle
(KAPR_1)
93 °
Lead angle(PSIR)
-3 °
Clamping type code(MTP)
clamp with pin through hole
Insert type(CUTINT_MASTER)
DNMG 150408
Connection - machine side(ADINTMS)
Rectangular shank -inch: 1 1/4 x 1 1/4
Maximum ramping angle
(RMPX)
27 °
Workpiece side body angle
(BAWS)
0 °
Machine side body angle(BAMS)
0 °
Maximum overhang
(OHX)
41.6 mm
Hand
(HAND)
Right-hand
Coolant exit style(CXSC)
Axially concentric or off-center with nozzle, adjustable
Coolant entry style(CNSC)
axial concentric entry
Coolant entry thread size(CNT)
G 1/8-28
Coolant pressure(CP)
275 bar
Shank width(B)
31.75 mm
Shank height(H)
31.75 mm
Functional length(LF)
150 mm
Functional width(WF)
38.1 mm
Functional height(HF)
31.75 mm
Orthogonal rake angle(GAMO)
-6 °
Inclination angle(LAMS)
-7 °
Torque(TQ)
5 Nm
Body material(BMC)
Steel
Weight of item(WT)
1.079 kg
Master insert identification(MIID)
DNMG 15 04 08
Overall length(OAL)
150 mm
Insert seat - metric(SSC_M)
15
Insert seat size code imperial view(SSC_N)
1/2
Release date(ValFrom20)
9/19/12
Release pack id(RELEASEPACK)
12.2
