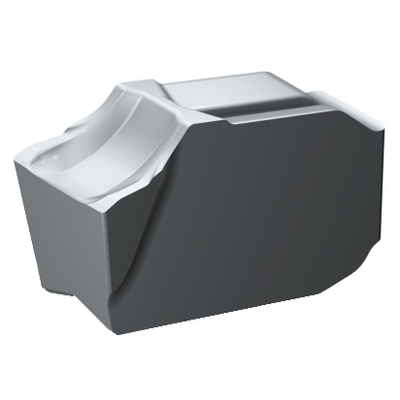

Generic representation
Available
Package quantity: 10
ISO: QD-NK-0635-035E-PL 1130
Material Id: 7101097
EAN: 7323221287559
ANSI: QD-NK-0635-035E-PL 1130
Start values (Hex/Fz conv. factor 1.2 )
P2.1.Z.AN, Hardness: 175 HB
P
fz 0.06 mm (0.02 - 0.1)
hex 0.05 mm (0.02 - 0.08)
vc 280 m/min (290 - 275)
M1.0.Z.AQ, Hardness: 200 HB
M
fz 0.06 mm (0.02 - 0.1)
hex 0.05 mm (0.02 - 0.08)
vc 175 m/min (175 - 170)
Technical illustrations
Technical illustrations
Product data
Workpiece material(s)(TMC1ISO)
P
M
S
H
Chip breaker(CBMD)
PL
Operation type
(CTPT)
light
Insert mounting style code (metric)(IFS)
Concave prismatic section
Insert size and shape
(CUTINT_SIZESHAPE)
CoroMill QD -size K
Cutting edge count(CEDC)
1
Insert seat - metric(SSC_M)
K
Cutting width
(CW)
6.35 mm
Cutting width lower tolerance(CWTOLL)
0.005 mm
Cutting width upper tolerance(CWTOLU)
0.055 mm
Corner radius left(REL)
0.35 mm
Corner radius right(RER)
0.35 mm
Machine side body angle(BAMS)
0 °
Hand
(HAND)
Neutral
Grade
(GRADE)
1130
Coating(COATING)
PVD AlTiCrN
Insert thickness(S)
5 mm
Clearance angle major(AN)
7 °
Weight of item(WT)
0.007 kg
Insert seat size code imperial view(SSC_N)
K
Release date(ValFrom20)
9/22/16
Release pack id(RELEASEPACK)
16.2
