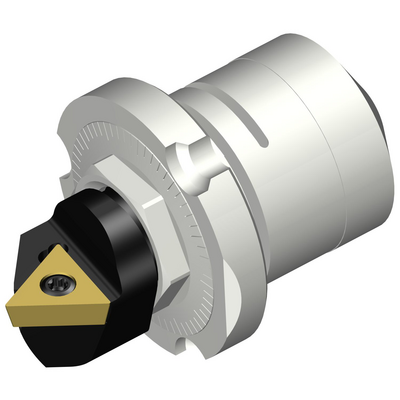

Specific representation
Package quantity: 1
ISO: R148C-33-11 03
Material Id: 5741546
EAN: 12420892
ANSI: R148C-33-11 03
Technical illustrations
Product data
Tool cutting edge angle
(KAPR)
90 °
Clamping type code(MTP)
clamp with screw through hole
Insert type(CUTINT_MASTER)
TCMT 110304 (RE<0.4)
Connection - machine side(ADINTMS)
Fine Boring Unit -angular mounting -size 3
Minimum bore diameter
(DMIN)
1.6535 inch
Adjustability(ADJBY)
Yes
Hand
(HAND)
Right
Coolant entry style(CNSC)
without coolant entry
Functional length(LF)
1.0197 inch
Functional width(WF)
0.0472 inch
Overall length(OAL)
1.8976 inch
Torque(TQ)
0.6638 ftlbf
Weight of item(WT)
0.3023 lb
Insert seat - metric(SSC_M)
11
Insert seat size code imperial view(SSC_N)
1/4
Release date(ValFrom20)
2/12/09
Release pack id(RELEASEPACK)
09.1
