R166.39G-24RD03-100 1125
R166.39G-24RD03-100 1125
T-Max® Twin-Lock, insert for thread turningchevron_right

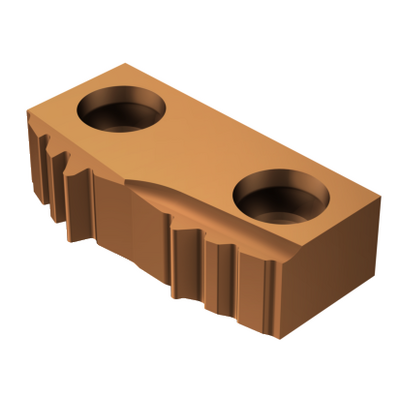

Generic representation
Available within a week
Package quantity: 10
ISO: R166.39G-24RD03-100 1125
Material Id: 5742296
EAN: 12311305
ANSI: R166.39G-24RD03-100 1125
Start values
P2.1.Z.AN, Hardness: 175 HB
P
ap 1.4 mm
nap10
vc 160 m/min
Technical illustrations
Technical illustrations
Product data
Workpiece material(s)(TMC1ISO)
P
M
K
N
S
Chip breaker(CBMD)
A
Thread form(THFT)
API round 60°
Standard number(STDNO_1)
API SPEC. 5B
Thread type(TTP)
external
Threads per inch(TPI)
10
Thread profile type(TPT)
full profile
Taper gradient(TG)
0.0625
Tooth count(NT)
3
Theoretical thread height(HA)
1.76 mm
Thread height difference(HB)
0.36 mm
Profile distance ex(PDX)
6.87 mm
Profile distance ey(PDY)
12.865 mm
Insert mounting style code (metric)(IFS)
Cylindrical fixing hole
Fixing hole diameter(D1)
4.675 mm
Insert size and shape
(CUTINT_SIZESHAPE)
Twin Lock -166.39 G-24
Cutting edge count(CEDC)
2
Insert length(INSL)
24 mm
Hand
(HAND)
Right
Grade
(GRADE)
1125
Substrate(SUBSTRATE)
HC
Coating(COATING)
PVD TiAlN
Insert thickness(S)
6.35 mm
Weight of item(WT)
0.0173 kg
Insert seat - metric(SSC_M)
24
Insert seat size code imperial view(SSC_N)
24
Release date(ValFrom20)
1/28/08
Release pack id(RELEASEPACK)
08.1
