R166.39L-24RD04-100 1125
R166.39L-24RD04-100 1125
T-Max® Twin-Lock, insert for thread turningchevron_right

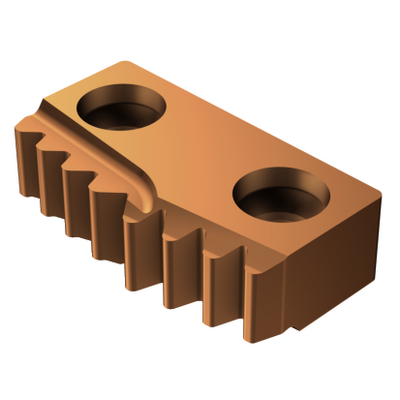

Generic representation
Available within a week
Package quantity: 10
ISO: R166.39L-24RD04-100 1125
Material Id: 5742738
EAN: 12311342
ANSI: R166.39L-24RD04-100 1125
Start values
P2.1.Z.AN, Hardness: 175 HB
P
ap 0.055 in
nap10
vc 520 sfm
Technical illustrations
Technical illustrations
Product data
Workpiece material(s)(TMC1ISO)
P
M
K
N
S
Chip breaker(CBMD)
A
Thread form(THFT)
API round 60°
Standard number(STDNO_1)
API SPEC. 5B
Thread type(TTP)
internal
Threads per inch(TPI)
10
Thread profile type(TPT)
full profile
Taper gradient(TG)
0.0625
Tooth count(NT)
4
Theoretical thread height(HA)
0.0693 in
Thread height difference(HB)
0.0142 in
Profile distance ex(PDX)
0.3705 in
Profile distance ey(PDY)
0.4763 in
Insert mounting style code (metric)(IFS)
Cylindrical fixing hole
Fixing hole diameter(D1)
0.1841 in
Insert size and shape
(CUTINT_SIZESHAPE)
Twin Lock -166.39 L-24
Cutting edge count(CEDC)
2
Insert length(INSL)
0.9449 in
Hand
(HAND)
Right
Grade
(GRADE)
1125
Substrate(SUBSTRATE)
HC
Coating(COATING)
PVD TiAlN
Insert thickness(S)
0.25 in
Weight of item(WT)
0.039 lb
Insert seat - metric(SSC_M)
24
Insert seat size code imperial view(SSC_N)
24
Release date(ValFrom20)
1/28/08
Release pack id(RELEASEPACK)
08.1
