R331.1A-08 45 40H-WM1130
R331.1A-08 45 40H-WM1130
CoroMill® 331, insert for side and face millingchevron_right

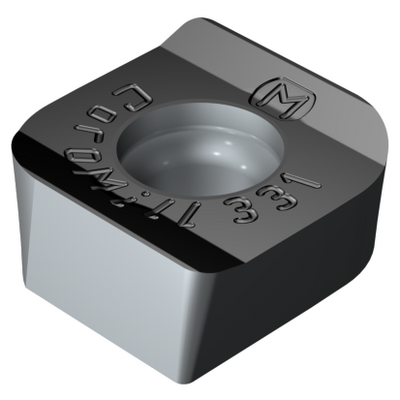

Generic representation
Available within a week
Package quantity: 10
ISO: R331.1A-08 45 40H-WM1130
Material Id: 7295613
EAN: 7323221989842
ANSI: R331.1A-08 45 40H-WM1130
Start values (Hex/Fz conv. factor 1.2 )
P2.1.Z.AN, Hardness: 175 HB
P
fz 0.16 mm (0.06 - 0.3)
hex 0.13 mm (0.05 - 0.25)
vc 265 m/min (280 - 245)
M1.0.Z.AQ, Hardness: 200 HB
M
fz 0.12 mm (0.04 - 0.18)
hex 0.1 mm (0.03 - 0.15)
vc 165 m/min (175 - 160)
Technical illustrations
Technical illustrations
Product data
Workpiece material(s)(TMC1ISO)
P
M
H
Chip breaker(CBMD)
WM
Operation type
(CTPT)
pre-machining with demand on surface
Insert mounting style code (metric)(IFS)
Partly cylindrical, 40-60 deg countersink on one or two sides
Fixing hole diameter(D1)
3.6 mm
Insert size and shape
(CUTINT_SIZESHAPE)
CoroMill 331 -08
Cutting edge count(CEDC)
2
Insert width(W1)
9.5 mm
Insert shape code(SC)
Rectangular
Cutting edge effective length(LE)
7.7 mm
Depth of cut maximum
(APMX)
7.7 mm
Wiper edge length(BS)
1.4 mm
Corner radius
(RE)
4 mm
Major cutting edge angle(KRINS)
90 °
Hand
(HAND)
Right
Grade
(GRADE)
1130
Substrate(SUBSTRATE)
HC
Coating(COATING)
PVD AlTiCrN
Insert thickness(S)
4.446 mm
Weight of item(WT)
0.0027 kg
Insert seat - metric(SSC_M)
08
Insert seat size code imperial view(SSC_N)
08
Release date(ValFrom20)
3/1/19
Release pack id(RELEASEPACK)
19.1
