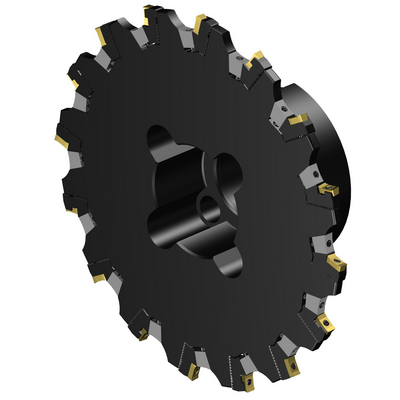

R331.32-200Q40CM06.00
R331.32-200Q40CM06.00
Specific representation
Available within a week
Package quantity: 1
ISO: R331.32-200Q40CM06.00
Material Id: 5745131
EAN: 11173562
ANSI: R331.32-200Q40CM06.00
Technical illustrations
Technical illustrations
Product data
Cutting width
(CW)
6 mm
Minimum cutting width(CWN)
6 mm
Maximum cutting width(CWX)
8 mm
Premachined slot width(PSW)
0 mm
Cutting diameter
(DC)
200 mm
Cutting depth maximum
(CDX)
51 mm
Clamping type code(MTP)
clamp with screw through hole
Insert type(CUTINT_MASTER)
CoroMill 331 -size 04 (N/R331.1A-04RE0.20-1.54)
Peripheral effective cutting edge count(ZEFP)
8
Connection - machine side(ADINTMS)
Arbor -ISO 6462 -C (4 bolts) -metric: 40S
Hand
(HAND)
Right
Coolant entry style(CNSC)
without coolant entry
Connection diameter machine side(DCONMS)
40 mm
Hub diameter(DHUB)
96 mm
Standard number(STDNO)
ISO6462
Standard letter(STDLET)
C
Diameter bolt circle(DBC)
66.7 mm
Functional length(LF)
63 mm
Minimum functional length(LFN)
63 mm
Torque(TQ)
0.8 Nm
Rotational speed maximum(RPMX)
11,700 1/min
Weight of item(WT)
3.4 kg
Overall length(OAL)
63 mm
Release date(ValFrom20)
10/11/99
Release pack id(RELEASEPACK)
99.2
