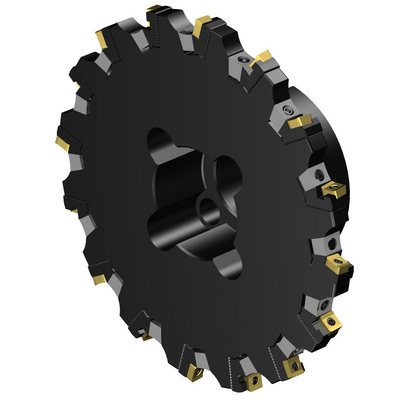

R331.32-200Q40FM12.00
R331.32-200Q40FM12.00
Specific representation
Available within a week
Package quantity: 1
ISO: R331.32-200Q40FM12.00
Material Id: 5745125
EAN: 11173595
ANSI: R331.32-200Q40FM12.00
Technical illustrations
Technical illustrations
Product data
Cutting width
(CW)
0.4724 inch
Minimum cutting width(CWN)
0.4724 inch
Maximum cutting width(CWX)
0.5906 inch
Premachined slot width(PSW)
0 inch
Cutting diameter
(DC)
7.874 inch
Cutting depth maximum
(CDX)
2.0079 inch
Clamping type code(MTP)
clamp with screw through hole
Insert type(CUTINT_MASTER)
CoroMill 331 -size 08 (N/R331.1A-08RE0.20-1.54)
Peripheral effective cutting edge count(ZEFP)
8
Connection - machine side(ADINTMS)
Arbor -ISO 6462 -C (4 bolts) -metric: 40S
Hand
(HAND)
Right
Coolant entry style(CNSC)
without coolant entry
Connection diameter machine side(DCONMS)
1.5748 inch
Hub diameter(DHUB)
3.7795 inch
Standard number(STDNO)
ISO6462
Standard letter(STDLET)
C
Diameter bolt circle(DBC)
2.626 inch
Functional length(LF)
2.4803 inch
Minimum functional length(LFN)
2.4803 inch
Torque(TQ)
0.8851 ftlbf
Rotational speed maximum(RPMX)
11,000 1/min
Weight of item(WT)
9.4799 lb
Overall length(OAL)
2.4803 inch
Release date(ValFrom20)
10/11/99
Release pack id(RELEASEPACK)
99.2
