R331.32-202Q40FMQ
R331.32-202Q40FMQ
Specific representation
Out of stock
Package quantity: 1
ISO: R331.32-202Q40FMQ
Material Id: 5745089
EAN: 10972220
ANSI: R331.32-202Q40FMQ

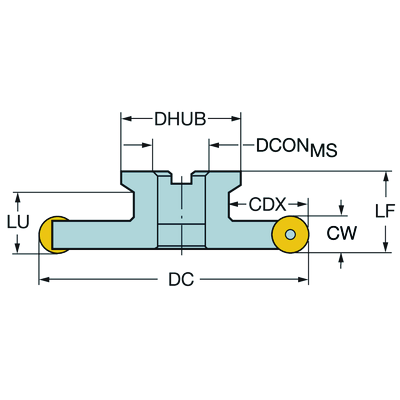

Technical illustrations
Technical illustrations
Product data
Cutting width
(CW)
12 mm
Cutting diameter
(DC)
202 mm
Cutting depth maximum
(CDX)
52 mm
Working engagement ratio maximum(AERMX_FFW)
1
Working engagement ratio maximum(AERMX_BFW)
0.257
Clamping type code(MTP)
clamp with screw through hole
Insert type(CUTINT_MASTER)
CoroMill 200 metric RCKT 1204M0
Peripheral effective cutting edge count(ZEFP)
16
Connection - machine side(ADINTMS)
Arbor -ISO 6462 -C (4 bolts) -metric: 40S
Hand
(HAND)
Right
Coolant entry style(CNSC)
without coolant entry
Connection diameter machine side(DCONMS)
40 mm
Hub diameter(DHUB)
96 mm
Standard number(STDNO)
ISO6462
Standard letter(STDLET)
C
Diameter bolt circle(DBC)
66.7 mm
Functional length(LF)
63 mm
Torque(TQ)
3 Nm
Rotational speed maximum(RPMX)
11,000 1/min
Weight of item(WT)
4.425 kg
Overall length(OAL)
63 mm
Release date(ValFrom20)
12/2/96
Release pack id(RELEASEPACK)
97.1
