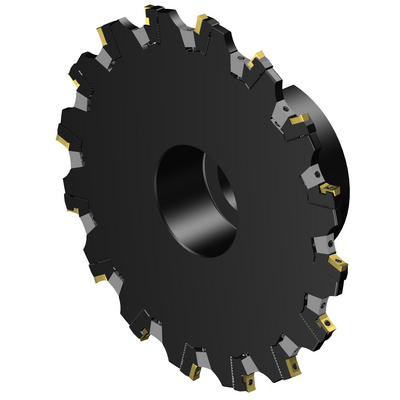

R331.32-203R38CM0.236
R331.32-203R38CM0.236
Specific representation
Available
Package quantity: 1
ISO: R331.32-203R38CM0.236
Material Id: 6448853
EAN: 26448853
ANSI: R331.32-203R38CM0.236
Technical illustrations
Technical illustrations
Product data
Cutting width
(CW)
0.2362 inch
Minimum cutting width(CWN)
0.2362 inch
Maximum cutting width(CWX)
0.315 inch
Premachined slot width(PSW)
0 inch
Cutting diameter
(DC)
8 inch
Cutting depth maximum
(CDX)
2.071 inch
Clamping type code(MTP)
clamp with screw through hole
Insert type(CUTINT_MASTER)
CoroMill 331 -size 04 (N/R331.1A-04RE0.20-1.54)
Peripheral effective cutting edge count(ZEFP)
8
Connection - machine side(ADINTMS)
Arbor -ISO 6462 -B (cutter retaining screw) -inch: 1 1/2
Hand
(HAND)
Right
Coolant entry style(CNSC)
without coolant entry
Connection diameter machine side(DCONMS)
1.5 inch
Hub diameter(DHUB)
3.78 inch
Standard number(STDNO)
ISO6462
Standard letter(STDLET)
B
Functional length(LF)
2.48 inch
Minimum functional length(LFN)
2.48 inch
Torque(TQ)
0.59 ftlbf
Rotational speed maximum(RPMX)
11,700 1/min
Weight of item(WT)
16.8874 lb
Overall length(OAL)
2.48 inch
Release date(ValFrom20)
9/24/13
Release pack id(RELEASEPACK)
13.2
