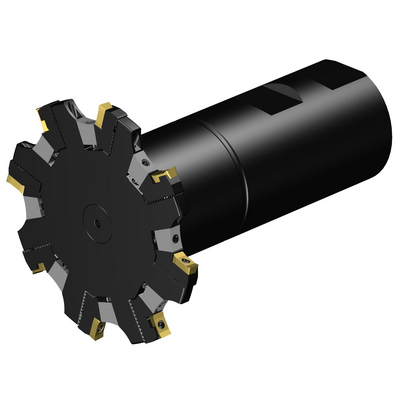

R331.32C-101M51CM
R331.32C-101M51CM
Specific representation
Available
Package quantity: 1
ISO: R331.32C-101M51CM
Material Id: 7424659
EAN: 7323222436109
ANSI: R331.32C-101M51CM
Technical illustrations
Technical illustrations
Product data
Cutting width
(CW)
6 mm
Minimum cutting width(CWN)
6 mm
Maximum cutting width(CWX)
8 mm
Premachined slot width(PSW)
0 mm
Cutting diameter
(DC)
101.6 mm
Cutting depth maximum
(CDX)
24.003 mm
Clamping type code(MTP)
clamp with screw through hole
Insert type(CUTINT_MASTER)
CoroMill 331 -size 04 (N/R331.1A-04RE0.20-1.54)
Peripheral effective cutting edge count(ZEFP)
4
Connection - machine side(ADINTMS)
Weldon (DIN6535-HB) -inch: 2
Hand
(HAND)
Right
Coolant entry style(CNSC)
axial concentric entry
Coolant pressure(CP)
80 bar
Connection diameter machine side(DCONMS)
50.8 mm
Standard number(STDNO)
ISO3338-2
Standard letter(STDLET)
WE
Functional length(LF)
140 mm
Minimum functional length(LFN)
140 mm
Torque(TQ)
0.8 Nm
Rotational speed maximum(RPMX)
17,100 1/min
Weight of item(WT)
2.32 kg
Overall length(OAL)
140 mm
Release date(ValFrom20)
9/25/18
Release pack id(RELEASEPACK)
18.2
