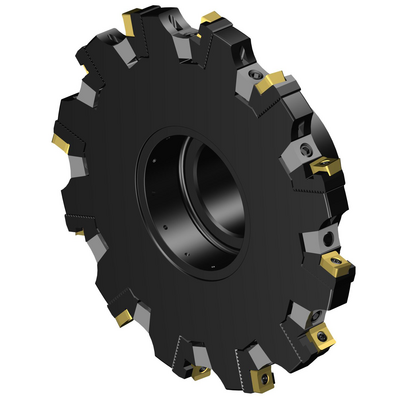

R331.32C-160Q40FM
R331.32C-160Q40FM
Specific representation
Available within a week
Package quantity: 1
ISO: R331.32C-160Q40FM
Material Id: 7295414
EAN: 7323221987961
ANSI: R331.32C-160Q40FM
Technical illustrations
Technical illustrations
Product data
Cutting width
(CW)
12 mm
Minimum cutting width(CWN)
12 mm
Maximum cutting width(CWX)
15 mm
Premachined slot width(PSW)
0 mm
Cutting diameter
(DC)
160 mm
Cutting depth maximum
(CDX)
41 mm
Clamping type code(MTP)
clamp with screw through hole
Insert type(CUTINT_MASTER)
CoroMill 331 -size 08 (N/R331.1A-08RE0.20-1.54)
Usable length
(LU)
26 mm
Peripheral effective cutting edge count(ZEFP)
6
Connection - machine side(ADINTMS)
Arbor -ISO 6462 -B (cutter retaining screw) -metric: 40
Hand
(HAND)
Right
Coolant entry style(CNSC)
axial concentric entry
Coolant pressure(CP)
80 bar
Connection diameter machine side(DCONMS)
40 mm
Hub diameter(DHUB)
73 mm
Standard number(STDNO)
ISO6462
Standard letter(STDLET)
B
Functional length(LF)
50 mm
Minimum functional length(LFN)
50 mm
Torque(TQ)
1.2 Nm
Rotational speed maximum(RPMX)
12,400 1/min
Weight of item(WT)
2.268 kg
Overall length(OAL)
50 mm
Release date(ValFrom20)
2/23/18
Release pack id(RELEASEPACK)
18.1
