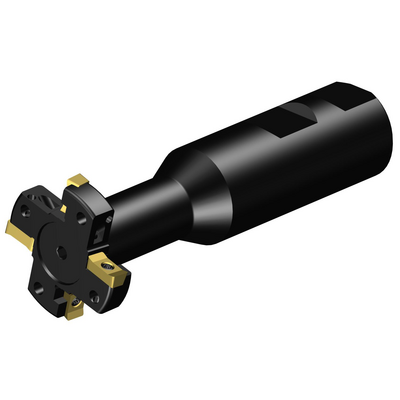

R331.35C-038M25DMA05
R331.35C-038M25DMA05
CoroMill® 331, cutter for full side and face millingchevron_right
Specific representation
Available
Package quantity: 1
ISO: R331.35C-038M25DMA05
Material Id: 7295449
EAN: 7323221988319
ANSI: R331.35C-038M25DMA05
Technical illustrations
Technical illustrations
Product data
Cutting width
(CW)
7.9248 mm
Cutting diameter
(DC)
38.1 mm
Cutting depth maximum
(CDX)
10.3886 mm
Working engagement ratio maximum(AERMX_FFW)
1
Working engagement ratio maximum(AERMX_BFW)
0.273
Clamping type code(MTP)
clamp with screw through hole
Insert type(CUTINT_MASTER)
CoroMill 331 -size 04 (N/R331.1A-04RE0.20-1.54)
Usable length
(LU)
38.1 mm
Peripheral effective cutting edge count(ZEFP)
2
Connection - machine side(ADINTMS)
Weldon (DIN6535-HB) -inch: 1
Hand
(HAND)
Right
Coolant entry style(CNSC)
axial concentric entry
Coolant pressure(CP)
80 bar
Connection diameter machine side(DCONMS)
25.4 mm
Standard number(STDNO)
ISO3338-2
Standard letter(STDLET)
WE
Functional length(LF)
105.156 mm
Torque(TQ)
1.2 Nm
Rotational speed maximum(RPMX)
30,000 1/min
Weight of item(WT)
0.321 kg
Overall length(OAL)
105.156 mm
Release date(ValFrom20)
2/23/18
Release pack id(RELEASEPACK)
18.1
