R331.52C-080Q27EMR
R331.52C-080Q27EMR
Specific representation
List price: 1 291.00 EUR
Available
Package quantity: 1
ISO: R331.52C-080Q27EMR
Material Id: 7843385
EAN: 7323224953499
ANSI: R331.52C-080Q27EMR

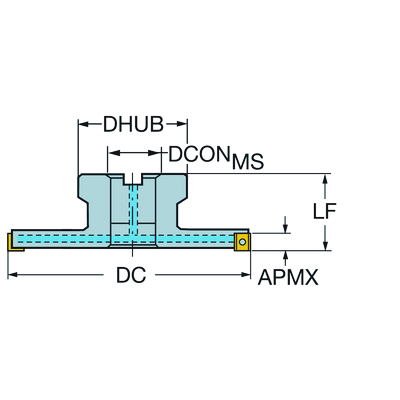

Technical illustrations
Technical illustrations
Product data
Cutting diameter
(DC)
80 mm
Working engagement ratio maximum(AERMX_FFW)
1
Clamping type code(MTP)
clamp with screw through hole
Insert type(CUTINT_MASTER)
CoroMill 331 -size 08 (N/R331.1A-08RE0.20-1.54)
Peripheral effective cutting edge count(ZEFP)
6
Connection - machine side(ADINTMS)
Arbor -ISO 6462 -A (hexagon socket head cap screw) -metric: 27
Hand
(HAND)
Right
Coolant entry style(CNSC)
axial concentric entry
Coolant pressure(CP)
80 bar
Connection diameter machine side(DCONMS)
27 mm
Hub diameter(DHUB)
51 mm
Standard number(STDNO)
ISO6462
Standard letter(STDLET)
A
Functional length(LF)
50 mm
Torque(TQ)
1.4 Nm
Rotational speed maximum(RPMX)
18,100 1/min
Weight of item(WT)
0.561 kg
Body diameter(BD)
77.6 mm
Body length(LB)
9.5 mm
Overall length(OAL)
50 mm
Release date(ValFrom20)
5/26/20
Release pack id(RELEASEPACK)
20.2
