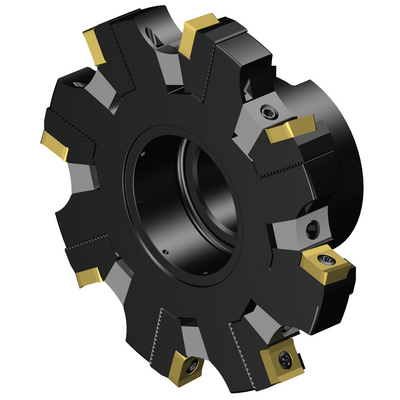

R331.52C-125Q32KMR
R331.52C-125Q32KMR
Specific representation
List price: 1 797.00 EUR
Available
Package quantity: 1
ISO: R331.52C-125Q32KMR
Material Id: 7843410
EAN: 7323224953741
ANSI: R331.52C-125Q32KMR
Technical illustrations
Technical illustrations
Product data
Cutting diameter
(DC)
4.9213 inch
Working engagement ratio maximum(AERMX_FFW)
1
Clamping type code(MTP)
clamp with screw through hole
Insert type(CUTINT_MASTER)
CoroMill 331 -size 11 (N/R331.1A-11RE0.20-1.54)
Peripheral effective cutting edge count(ZEFP)
8
Connection - machine side(ADINTMS)
Arbor -ISO 6462 -B (cutter retaining screw) -metric: 32
Hand
(HAND)
Right
Coolant entry style(CNSC)
axial concentric entry
Coolant pressure(CP)
1,160 PSI
Connection diameter machine side(DCONMS)
1.2598 inch
Hub diameter(DHUB)
2.4016 inch
Standard number(STDNO)
ISO6462
Standard letter(STDLET)
B
Functional length(LF)
1.9685 inch
Torque(TQ)
2.2127 ftlbf
Rotational speed maximum(RPMX)
12,400 1/min
Weight of item(WT)
3.4172 lb
Body diameter(BD)
4.7795 inch
Body length(LB)
0.5669 inch
Overall length(OAL)
1.9685 inch
Release date(ValFrom20)
5/26/20
Release pack id(RELEASEPACK)
20.2
