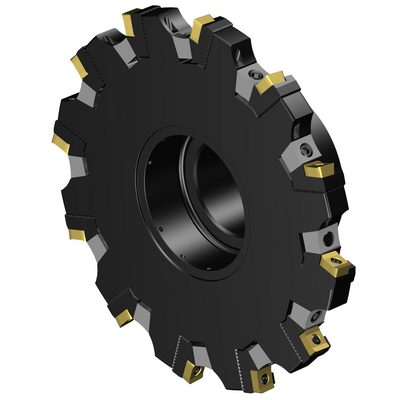

R331.52C-160Q40FMR
R331.52C-160Q40FMR
Specific representation
Available
Package quantity: 1
ISO: R331.52C-160Q40FMR
Material Id: 7848297
EAN: 7323224978157
ANSI: R331.52C-160Q40FMR
Technical illustrations
Technical illustrations
Product data
Cutting diameter
(DC)
6.2992 inch
Working engagement ratio maximum(AERMX_FFW)
1
Clamping type code(MTP)
clamp with screw through hole
Insert type(CUTINT_MASTER)
CoroMill 331 -size 08 (N/R331.1A-08RE0.20-1.54)
Peripheral effective cutting edge count(ZEFP)
12
Connection - machine side(ADINTMS)
Arbor -ISO 6462 -B (cutter retaining screw) -metric: 40
Hand
(HAND)
Right
Coolant entry style(CNSC)
axial concentric entry
Coolant pressure(CP)
1,160 PSI
Connection diameter machine side(DCONMS)
1.5748 inch
Hub diameter(DHUB)
2.874 inch
Standard number(STDNO)
ISO6462
Standard letter(STDLET)
B
Functional length(LF)
1.9685 inch
Torque(TQ)
1.0326 ftlbf
Rotational speed maximum(RPMX)
12,400 1/min
Weight of item(WT)
4.2615 lb
Body diameter(BD)
6.1339 inch
Body length(LB)
0.4528 inch
Overall length(OAL)
1.9685 inch
Release date(ValFrom20)
5/26/20
Release pack id(RELEASEPACK)
20.2
