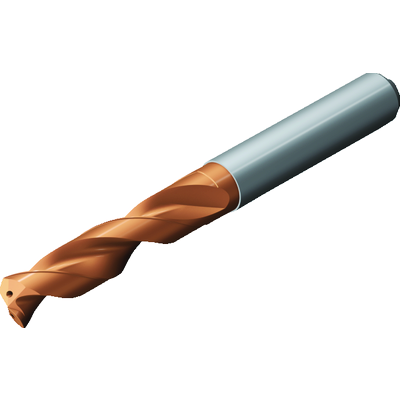

Generic representation
Being replaced by 860.1-1400-040A1-SM 1210
Available within a week
Different geometry and grade vs. the original one – Please check feed.
Available within a week
Package quantity: 1
ISO: R846-1400-30-A1A 1220
Material Id: 6256423
EAN: 26256423
ANSI: R846-1400-30-A1A 1220
Technical illustrations
Product data
Workpiece material(s)(TMC1ISO)
Cutting diameter
(DC)
14 mm
Connection diameter machine side(DCONMS)
14 mm
Usable length
(LU)
44.4 mm
Achievable hole tolerance(TCHA)
H9
Usable length diameter ratio
(ULDR)
3.1714
Orthogonal rake angle(GAMO)
20.44 °
Face effective cutt edge count(ZEFF)
2
Connection - machine side(ADINTMS)
Cylindrical shank (DIN6535-HA) -metric: 14
Connection diameter tolerance(TCDCON)
h6
Grade
(GRADE)
1220
Substrate(SUBSTRATE)
HC
Coating(COATING)
PVD TiAlN
Shank standard group(BSG)
DIN 6537 K
Chip breaker(CBMD)
SM
Coolant entry style(CNSC)
axial concentric entry on circle
Coolant pressure(CP)
20 bar
Point angle(SIG)
140 °
Point length(PL)
2.4 mm
Overall length(OAL)
107 mm
Functional length(LF)
104.6 mm
Chip flute length(LCF)
60 mm
Rotational speed maximum(RPMX)
1,137 1/min
Weight of item(WT)
0.1665 kg
Release date(ValFrom20)
10/30/19
Release pack id(RELEASEPACK)
12.2
