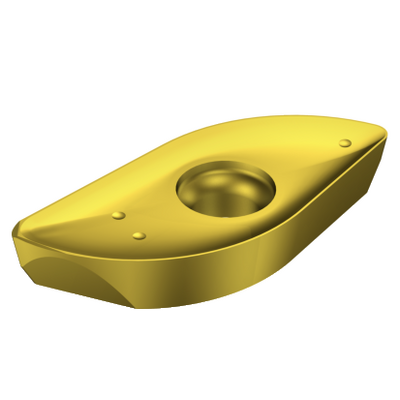

Generic representation
Being replaced by RA216-16 03 M-M 1230
Available
Different grade vs. the original product – Please check cutting speed.
Out of stock
Package quantity: 10
ISO: RA216-16 03 M-M 1025
Material Id: 5739055
EAN: 11164042
ANSI: RA216-16 03 M-M 1025
Start values (Hex/Fz conv. factor 1.41 )
P2.1.Z.AN, Hardness: 175 HB
P
fz 0.14 mm (0.08 - 0.21)
hex 0.1 mm (0.06 - 0.15)
vc 255 m/min (260 - 250)
M1.0.Z.AQ, Hardness: 200 HB
M
fz 0.14 mm (0.08 - 0.21)
hex 0.1 mm (0.06 - 0.15)
vc 265 m/min (270 - 260)
S2.0.Z.AG, Hardness: 350 HB
S
fz 0.14 mm (0.08 - 0.21)
hex 0.1 mm (0.06 - 0.15)
vc 40 m/min (45 - 40)
Technical illustrations
Technical illustrations
Product data
Workpiece material(s)(TMC1ISO)
P
M
K
N
S
H
Chip breaker(CBMD)
M-M
Operation type
(CTPT)
pre-machining with demand on surface
Insert mounting style code (metric)(IFS)
Partly cylindrical, 40-60 deg countersink on one or two sides
Fixing hole diameter(D1)
2.9 mm
Insert size and shape
(CUTINT_SIZESHAPE)
CoroMill 216 inch -1603
Cutting edge count(CEDC)
2
Cutting edge major radius(CEMR)
7.9375 mm
Cutting edge effective length(LE)
14.1986 mm
Insert rake angle(GAN)
0 °
Hand
(HAND)
Right
Grade
(GRADE)
1025
Substrate(SUBSTRATE)
HC
Coating(COATING)
PVD TiCN+TiN
Insert thickness(S)
3.175 mm
Weight of item(WT)
0.0022 kg
Insert seat - metric(SSC_M)
15.875
Insert seat size code imperial view(SSC_N)
5/8
Release date(ValFrom20)
3/1/99
Release pack id(RELEASEPACK)
99.1
