Specific representation
Being replaced by QI-RAFH12C25-016A
Available
Not compatible with inserts related to original product.
Out of stock
Package quantity: 1
ISO: RAF151.37-25-025A30
Material Id: 5738686
EAN: 11257610
ANSI: RAF151.37-25-025A30

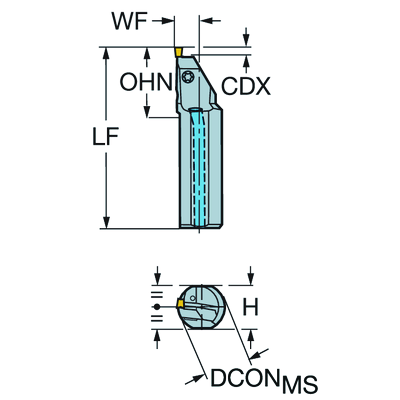

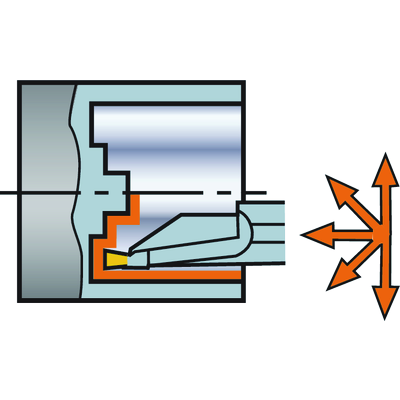

Technical illustrations
Generic representation
Product data
Cutting depth maximum
(CDX)
12 mm

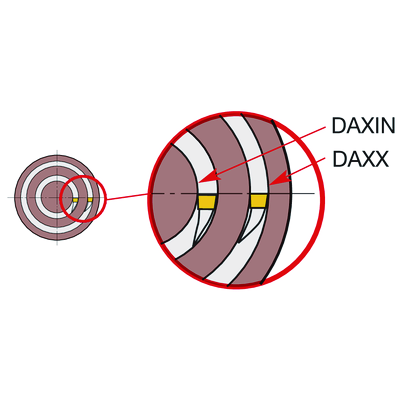

Axial groove inside diameter minimum(DAXIN)
16 mm
Maximum axial groove outside diameter(DAXX)
55 mm
Axial groove support direction(AXGSUP)
1
Clamping type code(MTP)
clamp on top of insert
Insert type(CUTINT_MASTER)
Q-Cut -size 30 (N151.3-400-30-7G)
Insert seat - metric(SSC_M)
30
Connection - machine side(ADINTMS)
Cylindrical shank w/ 3 flats -metric: 25
Workpiece side body angle
(BAWS)
0 °
Minimum overhang(OHN)
31.4 mm
Maximum overhang
(OHX)
62.5 mm
Hand
(HAND)
Right
Coolant entry style(CNSC)
axial concentric entry
Coolant exit style(CXSC)
axial inclined exit
Coolant pressure(CP)
10 bar
Connection diameter machine side(DCONMS)
25 mm
Shank height(H)
23 mm
Functional length(LF)
200 mm
Functional width(WF)
12.75 mm
Functional height(HF)
0.1 mm
Body diameter(BD)
25 mm
Overall length(OAL)
200 mm
Torque(TQ)
3.5 Nm
Weight of item(WT)
0.577 kg
Insert seat size code imperial view(SSC_N)
30
Release date(ValFrom20)
9/11/00
Release pack id(RELEASEPACK)
00.2
Last visited products
RAF151.37-25-025A30 chevron_right

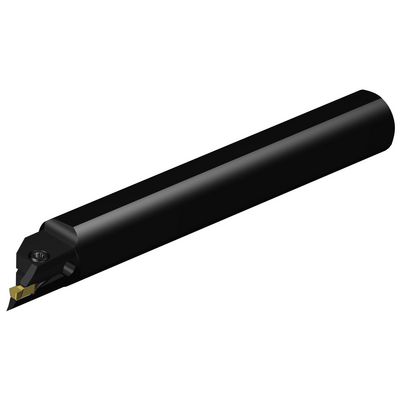

T-Max® Q-Cut boring bar for face grooving
