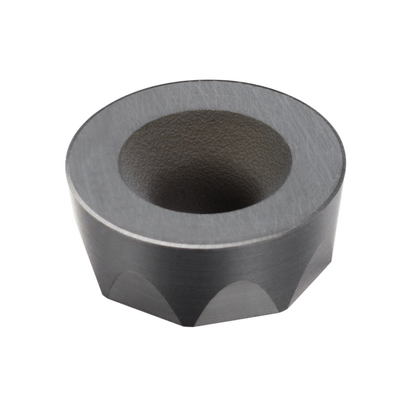

Generic representation
Package quantity: 10
ISO: RCKT 16 06 MO 6190
Material Id: 5781797
EAN: 12460081
ANSI: RCKT 16 06 MO 6190
Start values (Depth of cut 2.343 mm )
K2.2.C.UT, Hardness: 245 HB
K
fz 0.21 mm (0.1 - 0.42)
hex 0.15 mm (0.07 - 0.3)
vc 1100 m/min (1300 - 810)
Technical illustrations
Product data
Workpiece material(s)(TMC1ISO)
K
Chip breaker(CBMD)
SK15
Operation type
(CTPT)
pre-machining with demand on surface
Insert mounting style code (metric)(IFS)
Partly cylindrical, 40-60 deg countersink on one or two sides
Fixing hole diameter(D1)
5.5 mm
Insert size and shape
(CUTINT_SIZESHAPE)
CoroMill 200 RC1606M
Cutting edge count(CEDC)
8
Inscribed circle diameter(IC)
16 mm
Insert shape code(SC)
Round
Depth of cut maximum
(APMX)
2.34 mm
Corner radius
(RE)
8 mm
Face land width(BN)
0.2 mm
Face land angle(GB)
15 °
Hand
(HAND)
Neutral
Grade
(GRADE)
6190
Substrate(SUBSTRATE)
CN
Insert thickness(S)
6.35 mm
Weight of item(WT)
0.003 kg
Insert seat - metric(SSC_M)
16
Insert seat size code imperial view(SSC_N)
.630
Release date(ValFrom20)
3/1/10
Release pack id(RELEASEPACK)
10.2
