Specific representation
Available
Package quantity: 1
ISO: RF123G040-12B
Material Id: 5740833
EAN: 80004233
ANSI: RF123G040-12B
Technical illustrations

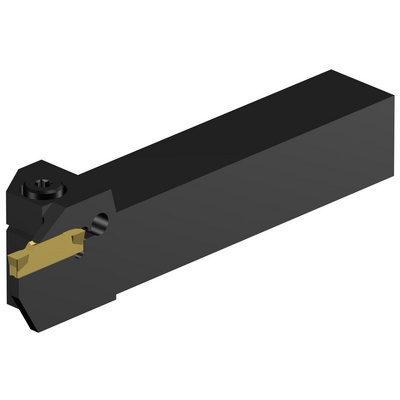

Generic representation
Product data
Cutting depth maximum
(CDX)
10.16 mm
Clamping type code(MTP)
clamp on top of insert
Insert type(CUTINT_MASTER)
CoroCut 2 -size G (N123G2-0300-0003-TF)
Insert seat - metric(SSC_M)
G
Connection - machine side(ADINTMS)
Rectangular shank -inch: 3/4 x 3/4
Workpiece side body angle
(BAWS)
0 °
Maximum overhang
(OHX)
29.9974 mm
Hand
(HAND)
Right
Coolant entry style(CNSC)
without coolant entry
Coolant exit style(CXSC)
no coolant exit
Shank width(B)
19.05 mm
Shank height(H)
19.05 mm
Functional length(LF)
114.3 mm
Functional width(WF)
21.0058 mm
Functional height(HF)
19.05 mm
Torque(TQ)
3.5 Nm
Overall length(OAL)
114.3 mm
Weight of item(WT)
0.305 kg
Insert seat size code imperial view(SSC_N)
G
Release date(ValFrom20)
8/10/98
Release pack id(RELEASEPACK)
98.3
