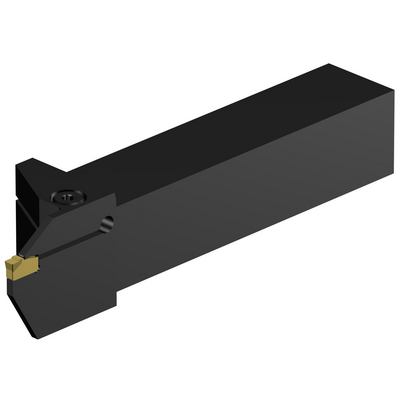

Specific representation
Available
Package quantity: 1
ISO: RF151.23-16-30
Material Id: 5740956
EAN: 80000575
ANSI: RF151.23-16-30

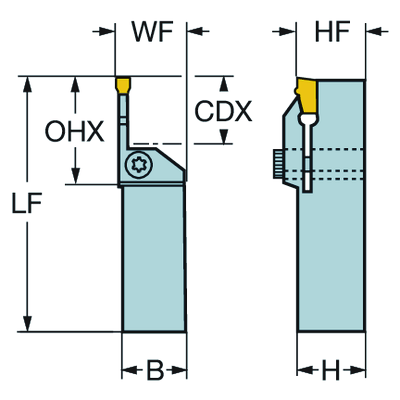

Technical illustrations
Generic representation
Product data
Cutting depth maximum
(CDX)
0.787 inch
Clamping type code(MTP)
clamp on top of insert
Insert type(CUTINT_MASTER)
Q-Cut -size 30 (N151.2-300-5E)
Insert seat - metric(SSC_M)
30
Connection - machine side(ADINTMS)
Rectangular shank -inch: 1 x 1
Workpiece side body angle
(BAWS)
0 °
Maximum overhang
(OHX)
1.614 inch
Hand
(HAND)
Right
Coolant entry style(CNSC)
without coolant entry
Coolant exit style(CXSC)
no coolant exit
Shank width(B)
1 inch
Shank height(H)
1 inch
Functional length(LF)
5 inch
Functional width(WF)
1.25 inch
Functional height(HF)
1 inch
Torque(TQ)
3.1715 ftlbf
Overall length(OAL)
5 inch
Weight of item(WT)
1.5234 lb
Insert seat size code imperial view(SSC_N)
30
Release date(ValFrom20)
10/7/91
Release pack id(RELEASEPACK)
91.3
