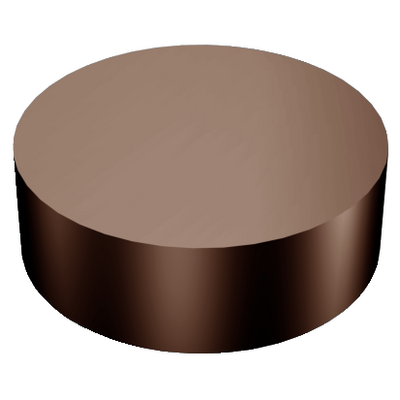

Generic representation
Available
Package quantity: 10
ISO: RNGN120700E 6065
Material Id: 5741282
EAN: 12219734
ANSI: RNG45A 6065
Start values (Depth of cut 1.8 mm )
S2.0.Z.AG, Hardness: 350 HB
S
ap 1.8 mm (0.9 - 3.2)
fn 0.2 mm/r (0.11 - 0.32)
hex 0.14 mm/r (0.08 - 0.22)
vc 215 m/min (250 - 165)
Technical illustrations
Product data
Workpiece material(s)(TMC1ISO)
S
Chip breaker(CBMD)
E
Operation type
(CTPT)
pre-machining with demand on surface
Insert size and shape
(CUTINT_SIZESHAPE)
RN1207
Cutting edge count(CEDC)
8
Insert shape code(SC)
Round
Corner radius
(RE)
6.35 mm
Insert rake angle(GAN)
0 °
Hand
(HAND)
Neutral
Grade
(GRADE)
6065
Substrate(SUBSTRATE)
CS
Weight of item(WT)
0.0035 kg
Release date(ValFrom20)
1/29/07
Release pack id(RELEASEPACK)
07.1
