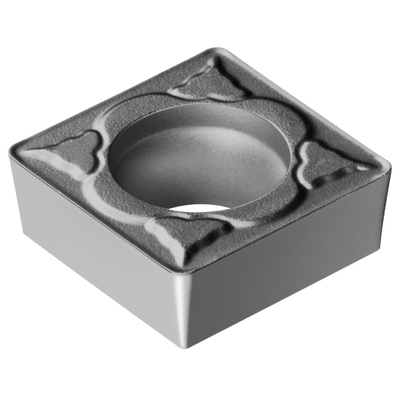

Generic representation
Available
Package quantity: 10
ISO: SCMT 09 T3 04-PM 5015
Material Id: 5749353
EAN: 11189205
ANSI: SCMT 3(2.5)1-PM 5015
Start values (KAPR 75 deg )
P2.1.Z.AN, Hardness: 175 HB
P
ap 1.5 mm (0.3 - 3.2)
fn 0.16 mm/r (0.08 - 0.24)
hex 0.15 mm/r (0.08 - 0.23)
vc 365 m/min (440 - 315)
Technical illustrations
Product data
Workpiece material(s)(TMC1ISO)
P
K
Chip breaker(CBMD)
PM
Operation type
(CTPT)
pre-machining with demand on surface
Fixing hole diameter(D1)
4.4 mm
Insert size and shape
(CUTINT_SIZESHAPE)
SC09T3
Cutting edge count(CEDC)
4
Insert shape code(SC)
Square
Cutting edge effective length(LE)
9.125 mm
Corner radius
(RE)
0.3969 mm
Hand
(HAND)
Neutral
Grade
(GRADE)
5015
Substrate(SUBSTRATE)
HT
Weight of item(WT)
0.0011 kg
Release date(ValFrom20)
6/19/00
Release pack id(RELEASEPACK)
02.2
