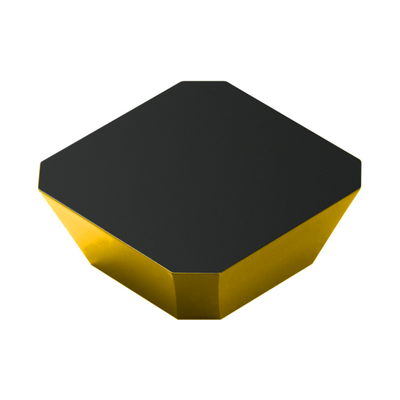

Generic representation
Available
Package quantity: 10
ISO: SEKN 12 03 AZ 4230
Material Id: 5749492
EAN: 12424285
ANSI: SEK 42A 4230
Start values (KAPR 45 deg )
P2.1.Z.AN, Hardness: 175 HB
P
fz 0.24 mm (0.1 - 0.28)
hex 0.17 mm (0.07 - 0.2)
vc 245 m/min (300 - 230)
K2.2.C.UT, Hardness: 245 HB
K
fz 0.24 mm (0.1 - 0.28)
hex 0.17 mm (0.07 - 0.2)
vc 160 m/min (200 - 155)
Technical illustrations
Product data
Workpiece material(s)(TMC1ISO)
P
K
Operation type
(CTPT)
pre-machining with demand on surface
Insert size and shape
(CUTINT_SIZESHAPE)
SE1203AZ
Cutting edge count(CEDC)
4
Insert shape code(SC)
Square
Cutting edge effective length(LE)
9.6 mm
Depth of cut maximum
(APMX)
6.4 mm
Wiper edge length(BS)
1.7 mm
Corner radius
(RE)
1.2 mm
Major cutting edge angle(KRINS)
45 °
Insert rake angle(GAN)
0 °
Hand
(HAND)
Neutral
Grade
(GRADE)
4230
Substrate(SUBSTRATE)
HC
Coating(COATING)
CVD TiCN+Al2O3+TiN
Weight of item(WT)
0.0055 kg
Release date(ValFrom20)
2/6/09
Release pack id(RELEASEPACK)
09.1
