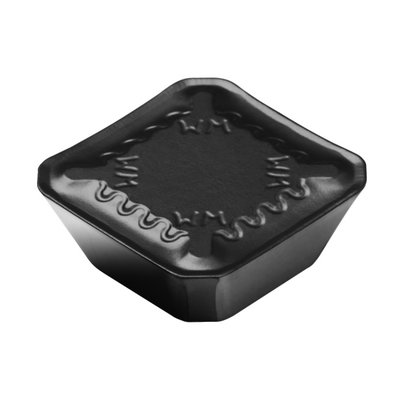

Generic representation
Available
Package quantity: 10
ISO: SEKR 12 04 AZ-WM 3020
Material Id: 5749776
EAN: 10921013
ANSI: SEKR 12 04 AZ-WM 3020
Start values (KAPR 45 deg )
K2.2.C.UT, Hardness: 245 HB
K
fz 0.24 mm (0.1 - 0.28)
hex 0.17 mm (0.07 - 0.2)
vc 205 m/min (245 - 190)
H1.3.Z.HA, Hardness: 60 HRC
H
fz 0.24 mm (0.1 - 0.28)
hex 0.17 mm (0.07 - 0.2)
vc 50 m/min (65 - 45)
Technical illustrations
Product data
Workpiece material(s)(TMC1ISO)
K
H
Chip breaker(CBMD)
WM
Operation type
(CTPT)
pre-machining with demand on surface
Insert mounting style code (metric)(IFS)
Without fixing hole
Insert size and shape
(CUTINT_SIZESHAPE)
SE1204AZ
Cutting edge count(CEDC)
4
Inscribed circle diameter(IC)
12.7 mm
Insert shape code(SC)
Square
Cutting edge effective length(LE)
9.6 mm
Depth of cut maximum
(APMX)
6.4 mm
Wiper edge length(BS)
1.6 mm
Corner radius
(RE)
1.5 mm
Major cutting edge angle(KRINS)
45 °
Insert rake angle(GAN)
15 °
Hand
(HAND)
Neutral
Grade
(GRADE)
3020
Substrate(SUBSTRATE)
HC
Coating(COATING)
CVD TiCN+Al2O3
Insert thickness(S)
4.7625 mm
Weight of item(WT)
0.0075 kg
Insert seat - metric(SSC_M)
12
Insert seat size code imperial view(SSC_N)
1/2
Release date(ValFrom20)
3/25/96
Release pack id(RELEASEPACK)
96.1
