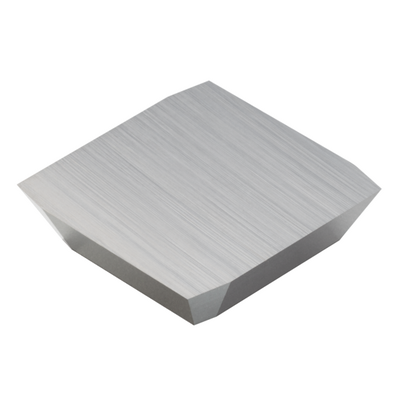

Generic representation
Available
Package quantity: 10
ISO: SFAN 12 03 EF R H10
Material Id: 5749507
EAN: 10043751
ANSI: SFA 42E3 R H10
Start values (KAPR 75 deg )
N1.3.C.AG, Hardness: 90 HB
N
fz 0.18 mm (0.1 - 0.31)
hex 0.17 mm (0.1 - 0.3)
vc 760 m/min (850 - 630)

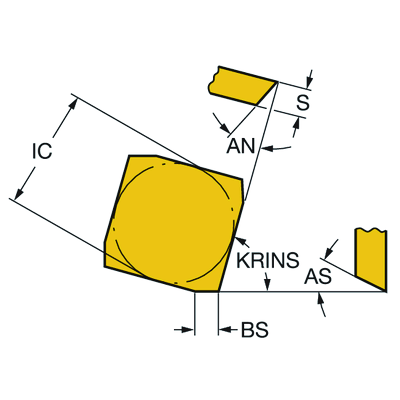

Technical illustrations
Product data
Workpiece material(s)(TMC1ISO)
K
N
Operation type
(CTPT)
light
Insert size and shape
(CUTINT_SIZESHAPE)
SF1203EF
Cutting edge count(CEDC)
4
Insert shape code(SC)
Square
Cutting edge effective length(LE)
9.6 mm
Depth of cut maximum
(APMX)
9 mm
Wiper edge length(BS)
2.5 mm
Major cutting edge angle(KRINS)
75 °
Insert rake angle(GAN)
0 °
Hand
(HAND)
Right
Grade
(GRADE)
H10
Substrate(SUBSTRATE)
HF
Weight of item(WT)
0.0054 kg
Release date(ValFrom20)
2/26/73
Release pack id(RELEASEPACK)
73.1
