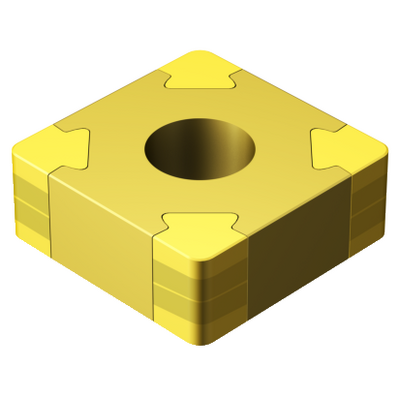

Generic representation
Available
Package quantity: 5
ISO: SNGA120408T01020B 7525
Material Id: 5908117
EAN: 25908117
ANSI: SNGA432T0320B 7525
Start values (KAPR 75 deg )
K2.2.C.UT, Hardness: 245 HB
K
ap 0.4 mm (0.07 - 1.3)
fn 0.3 mm/r (0.06 - 0.51)
hex 0.26 mm/r (0.05 - 0.44)
vc 1150 m/min (1400 - 940)
H1.3.Z.HA, Hardness: 60 HRC
H
ap 0.15 mm (0.07 - 0.4)
fn 0.14 mm/r (0.07 - 0.27)
hex 0.08 mm/r (0.04 - 0.16)
vc 135 m/min (145 - 120)
Technical illustrations
Product data
Workpiece material(s)(TMC1ISO)
K
H
Operation type
(CTPT)
finishing
Insert mounting style code (metric)(IFS)
Cylindrical fixing hole
Fixing hole diameter(D1)
5.156 mm
Insert size and shape
(CUTINT_SIZESHAPE)
SN1204
Cutting edge count(CEDC)
8
Inscribed circle diameter(IC)
12.7 mm
Insert shape code(SC)
Square
Cutting edge effective length(LE)
2.8 mm
Corner radius
(RE)
0.7938 mm
Face land width(BN)
0.1 mm
Face land angle(GB)
20 °
Hand
(HAND)
Neutral
Grade
(GRADE)
7525
Substrate(SUBSTRATE)
BC
Coating(COATING)
PVD TiN
Insert thickness(S)
4.7625 mm
Clearance angle major(AN)
0 °
Weight of item(WT)
0.0042 kg
Insert seat - metric(SSC_M)
12
Insert seat size code imperial view(SSC_N)
1/2
Release date(ValFrom20)
9/25/10
Release pack id(RELEASEPACK)
10.2
