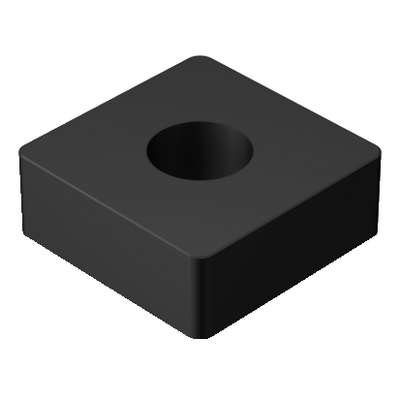

Generic representation
Available
Package quantity: 10
ISO: SNGA120412T01020 650
Material Id: 5749623
EAN: 10519471
ANSI: SNGA433T0320 650
Start values (KAPR 75 deg )
S2.0.Z.AG, Hardness: 350 HB
S
ap 0.047 in (0.004 - 0.142)
fn 0.006 in/r (0.003 - 0.012)
hex 0.006 in/r (0.003 - 0.012)
vc 1000 sfm (1150 - 670)
Technical illustrations
Product data
Workpiece material(s)(TMC1ISO)
K
S
H
Operation type
(CTPT)
finishing
Fixing hole diameter(D1)
0.203 inch
Insert size and shape
(CUTINT_SIZESHAPE)
SN1204
Cutting edge count(CEDC)
8
Insert shape code(SC)
Square
Cutting edge effective length(LE)
0.4528 inch
Corner radius
(RE)
0.0469 inch
Face land width(BN)
0.0039 inch
Face land angle(GB)
20 °
Hand
(HAND)
Neutral
Grade
(GRADE)
650
Substrate(SUBSTRATE)
CM
Weight of item(WT)
0.0062 lb
Release date(ValFrom20)
12/3/90
Release pack id(RELEASEPACK)
91.1
