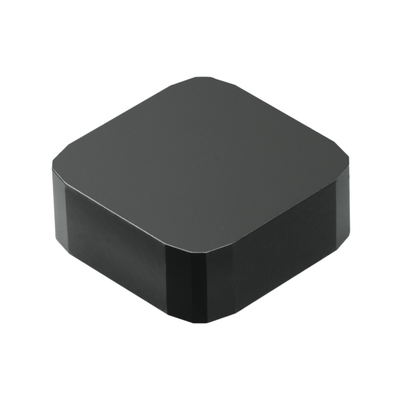

SNKN 12 04 EN N 3040 content_copy

SNKN 12 04 EN N 3040

Insert for millingchevron_right
Generic representation
Available
Package quantity: 10
ISO: SNKN 12 04 EN N 3040file_copy
Material Id: 5750375file_copy
EAN: 11023412file_copy
ANSI: SNK 43E2 3040file_copy
Start values  (KAPR  75 deg )
P2.1.Z.AN, Hardness: 175 HB
P
fz 0.26  mm   (0.1 - 0.31)
hex 0.25  mm   (0.1 - 0.3)
vc 205  m/min   (275 - 185)
K2.2.C.UT, Hardness: 245 HB
K
fz 0.26  mm   (0.1 - 0.31)
hex 0.25  mm   (0.1 - 0.3)
vc 155  m/min   (210 - 140)
H1.3.Z.HA, Hardness: 60 HRC
H
fz 0.26  mm   (0.1 - 0.31)
hex 0.25  mm   (0.1 - 0.3)
vc 28  m/min   (40 - 25)
Technical illustrations
Technical illustrations
Product data
Workpiece material(s)(TMC1ISO)info
P
K
H
Search Icon
Operation type (CTPT)info
pre-machining with demand on surfaceSearch Icon
Insert mounting style code (metric)(IFS)info
Without fixing holeSearch Icon
Insert size and shape (CUTINT_SIZESHAPE)info
SN1204ENSearch Icon
Cutting edge count(CEDC)info
8Search Icon
Inscribed circle diameter(IC)info
12.7 mmSearch Icon
Insert shape code(SC)info
SquareSearch Icon
Depth of cut maximum (APMX)info
9 mmSearch Icon
Corner chamfer(KCH)info
16 °Search Icon
Corner chamfer width(CHW)info
1.5 mmSearch Icon
Wiper edge length(BS)info
1.5 mmSearch Icon
Wiper edge radius(BSR)info
150 mmSearch Icon
Major cutting edge angle(KRINS)info
75 °Search Icon
Insert rake angle(GAN)info
0 °Search Icon
Hand (HAND)info
NeutralSearch Icon
Grade (GRADE)info
3040Search Icon
Substrate(SUBSTRATE)info
HCSearch Icon
Coating(COATING)info
CVD TiCN+Al2O3Search Icon
Insert thickness(S)info
4.7625 mmSearch Icon
Weight of item(WT)info
0.0103 kgSearch Icon
Insert seat - metric(SSC_M)info
12Search Icon
Insert seat size code imperial view(SSC_N)info
1/2Search Icon
Release date(ValFrom20)info
11/3/97Search Icon
Release pack id(RELEASEPACK)info
97.3Search Icon
