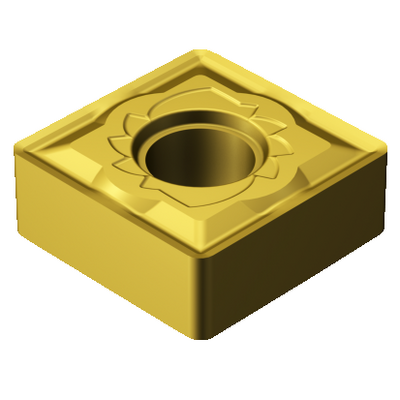

Generic representation
Available
Package quantity: 10
ISO: SNMG 15 06 12-SM S05F
Material Id: 5906825
EAN: 25906825
ANSI: SNMG 543-SM S05F
Start values (KAPR 75 deg )
S2.0.Z.AG, Hardness: 350 HB
S
ap 5 mm (1 - 8)
fn 0.31 mm/r (0.21 - 0.41)
hex 0.3 mm/r (0.2 - 0.4)
vc 60 m/min (75 - 50)
Technical illustrations
Product data
Workpiece material(s)(TMC1ISO)
S
Chip breaker(CBMD)
SM
Operation type
(CTPT)
pre-machining with demand on surface
Insert mounting style code (metric)(IFS)
Cylindrical fixing hole
Fixing hole diameter(D1)
6.35 mm
Insert size and shape
(CUTINT_SIZESHAPE)
SN1506
Cutting edge count(CEDC)
8
Inscribed circle diameter(IC)
15.875 mm
Insert shape code(SC)
Square
Cutting edge effective length(LE)
10.6 mm
Corner radius
(RE)
1.1906 mm
Hand
(HAND)
Neutral
Grade
(GRADE)
S05F
Substrate(SUBSTRATE)
HC
Coating(COATING)
CVD TiCrN+Al2O3+TiN
Insert thickness(S)
6.35 mm
Clearance angle major(AN)
0 °
Weight of item(WT)
0.0191 kg
Insert seat - metric(SSC_M)
15
Insert seat size code imperial view(SSC_N)
5/8
Release date(ValFrom20)
9/21/10
Release pack id(RELEASEPACK)
10.2
