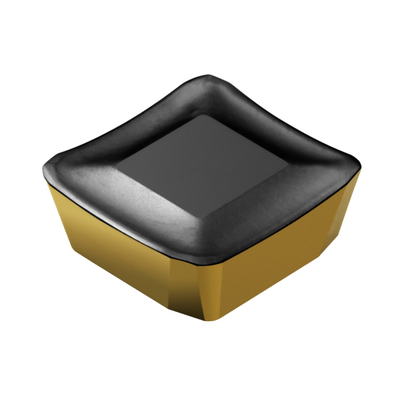

Generic representation
Available within a week
Package quantity: 10
ISO: SPKR 12 03 ED R-WH 4240
Material Id: 5751399
EAN: 12424436
ANSI: SMKR 42E2 R-WH 4240
Start values (KAPR 75 deg )
P2.1.Z.AN, Hardness: 175 HB
P
fz 0.26 mm (0.1 - 0.31)
hex 0.25 mm (0.1 - 0.3)
vc 180 m/min (240 - 160)
M1.0.Z.AQ, Hardness: 200 HB
M
fz 0.26 mm (0.1 - 0.31)
hex 0.25 mm (0.1 - 0.3)
vc 135 m/min (185 - 120)
K2.2.C.UT, Hardness: 245 HB
K
fz 0.26 mm (0.1 - 0.31)
hex 0.25 mm (0.1 - 0.3)
vc 125 m/min (170 - 115)
Technical illustrations
Product data
Workpiece material(s)(TMC1ISO)
P
M
K
Chip breaker(CBMD)
WH
Operation type
(CTPT)
heavy
Insert size and shape
(CUTINT_SIZESHAPE)
SP1203ED
Cutting edge count(CEDC)
4
Insert shape code(SC)
Square
Cutting edge effective length(LE)
10.1 mm
Depth of cut maximum
(APMX)
9 mm
Wiper edge length(BS)
1.6 mm
Major cutting edge angle(KRINS)
75 °
Insert rake angle(GAN)
8 °
Hand
(HAND)
Right
Grade
(GRADE)
4240
Substrate(SUBSTRATE)
HC
Coating(COATING)
CVD TiCN+Al2O3+TiN
Weight of item(WT)
0.0054 kg
Release date(ValFrom20)
2/6/09
Release pack id(RELEASEPACK)
09.1
