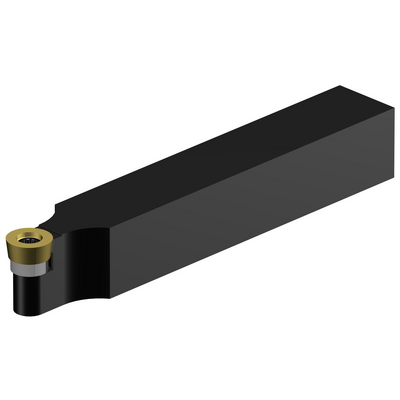

Specific representation
Out of stock
Package quantity: 1
ISO: SRDCN 10 3
Material Id: 5751193
EAN: 80001725
ANSI: SRDCN 10 3
Technical illustrations
Technical illustrations
Product data
Clamping type code(MTP)
clamp with screw through hole
Insert type(CUTINT_MASTER)
inch RCMT 09T300
Connection - machine side(ADINTMS)
Rectangular shank -inch: 5/8 x 5/8
Maximum ramping angle
(RMPX)
90 °
Workpiece side body angle
(BAWS)
0 °
Machine side body angle(BAMS)
0 °
Maximum overhang
(OHX)
0.774 in
Usable length
(LU)
0.625 in
Hand
(HAND)
Neutral
Coolant exit style(CXSC)
no coolant exit
Coolant entry style(CNSC)
without coolant entry
Shank width(B)
0.625 in
Shank height(H)
0.625 in
Functional length(LF)
4 in
Functional width(WF)
0.4972 in
Functional height(HF)
0.625 in
Orthogonal rake angle(GAMO)
0 °
Inclination angle(LAMS)
0 °
Torque(TQ)
12.391 in lbf
Body material(BMC)
Steel
Weight of item(WT)
0.3814 lb
Master insert identification(MIID)
RCMT 09 T3 00
Overall length(OAL)
4 in
Insert seat - metric(SSC_M)
09
Insert seat size code imperial view(SSC_N)
3/8
Release date(ValFrom20)
9/10/90
Release pack id(RELEASEPACK)
90.2
