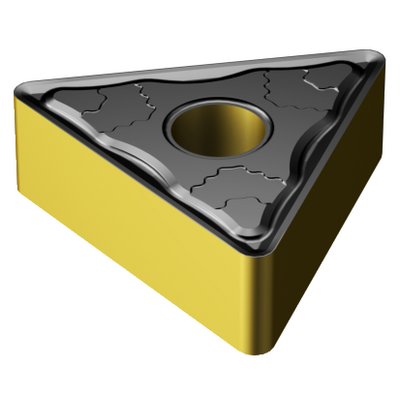

Generic representation
Being replaced by TNMG 16 04 08-PMC 4425
Available
Different grade vs. the original product – Please check cutting speed.
Available within a week
Package quantity: 10
ISO: TNMG 16 04 08-PMC 4325
Material Id: 6198269
EAN: 26198269
ANSI: TNMG 332-PMC 4325
Start values (KAPR 91 deg )
P2.1.Z.AN, Hardness: 175 HB
P
ap 2 mm (0.25 - 3)
fn 0.3 mm/r (0.15 - 0.4)
hex 0.3 mm/r (0.15 - 0.4)
vc 310 m/min (365 - 280)
K2.2.C.UT, Hardness: 245 HB
K
ap 2 mm (0.25 - 3)
fn 0.3 mm/r (0.15 - 0.4)
hex 0.3 mm/r (0.15 - 0.4)
vc 185 m/min (240 - 160)
Technical illustrations
Product data
Workpiece material(s)(TMC1ISO)
P
K
Chip breaker(CBMD)
PMC
Operation type
(CTPT)
pre-machining with demand on surface
Fixing hole diameter(D1)
3.81 mm
Insert size and shape
(CUTINT_SIZESHAPE)
TN1604
Cutting edge count(CEDC)
6
Insert shape code(SC)
Triangular
Cutting edge effective length(LE)
15.6978 mm
Corner radius
(RE)
0.7938 mm
Hand
(HAND)
Neutral
Grade
(GRADE)
4325
Substrate(SUBSTRATE)
HC
Coating(COATING)
CVD TiCN+Al2O3+TiN
Weight of item(WT)
0.0065 kg
Release date(ValFrom20)
2/25/14
Release pack id(RELEASEPACK)
14.1
