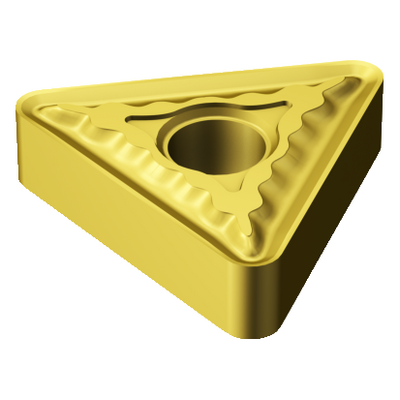

Generic representation
Available within a week
Package quantity: 10
ISO: TNMG 16 04 08-QM 2015
Material Id: 5754094
EAN: 12006934
ANSI: TNMG 332-QM 2015
Start values (KAPR 91 deg )
M1.0.Z.AQ, Hardness: 200 HB
M
ap 0.059 in (0.032 - 0.157)
fn 0.01 in/r (0.004 - 0.016)
hex 0.01 in/r (0.004 - 0.016)
vc 750 sfm (990 - 590)
Technical illustrations
Product data
Workpiece material(s)(TMC1ISO)
M
Chip breaker(CBMD)
QM
Operation type
(CTPT)
pre-machining with demand on surface
Fixing hole diameter(D1)
0.15 inch
Insert size and shape
(CUTINT_SIZESHAPE)
TN1604
Cutting edge count(CEDC)
6
Insert shape code(SC)
Triangular
Cutting edge effective length(LE)
0.5725 inch
Corner radius
(RE)
0.0313 inch
Hand
(HAND)
Neutral
Grade
(GRADE)
2015
Substrate(SUBSTRATE)
HC
Coating(COATING)
CVD TiCN+Al2O3+TiN
Weight of item(WT)
0.0142 lb
Release date(ValFrom20)
1/31/05
Release pack id(RELEASEPACK)
05.1
