TNMX 49 10 51-MF 4425content_copy

TNMX 49 10 51-MF 4425

Insert for bar peeling

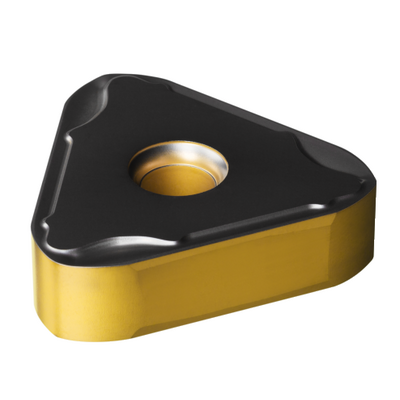

Generic representation
Available
Package quantity: 5
ISO: TNMX 49 10 51-MF 4425file_copy
Material Id: 8019696file_copy
EAN: 7323225785853file_copy
ANSI: TNMX 49 10 51-MF 4425file_copy

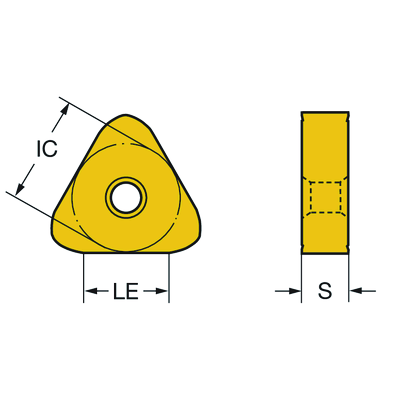

Technical illustrations
Product data
Chip breaker(CBMD)info
MFSearch Icon
Insert mounting style code (metric)(IFS)info
Partly cylindrical, 40-60 deg countersink on one or two sidesSearch Icon
Fixing hole diameter(D1)info
7.93 mmSearch Icon
Insert size and shape (CUTINT_SIZESHAPE)info
TN4910Search Icon
Insert seat size code imperial view(SSC_N)info
1 1/8Search Icon
Inscribed circle diameter(IC)info
28.575 mmSearch Icon
Insert shape code(SC)info
TriangularSearch Icon
Cutting edge effective length(LE)info
21 mmSearch Icon
Depth of cut maximum (APMX)info
2.5 mmSearch Icon
Cutting edge count(CEDC)info
6Search Icon
Wiper edge length(BS)info
21 mmSearch Icon
Corner radius (RE)info
12 mmSearch Icon
Wiper insert(WEP)info
YesSearch Icon
Major cutting edge angle(KRINS)info
120 °Search Icon
Hand (HAND)info
LeftSearch Icon
Grade (GRADE)info
4425Search Icon
Substrate(SUBSTRATE)info
HCSearch Icon
Coating(COATING)info
CVD TiCN+Al2O3+TiNSearch Icon
Insert thickness(S)info
10 mmSearch Icon
Clearance angle major(AN)info
0 °Search Icon
Weight of item(WT)info
0.1224 kgSearch Icon
Insert seat - metric(SSC_M)info
49Search Icon
Release date(ValFrom20)info
9/24/21Search Icon
Release pack id(RELEASEPACK)info
21.2Search Icon
