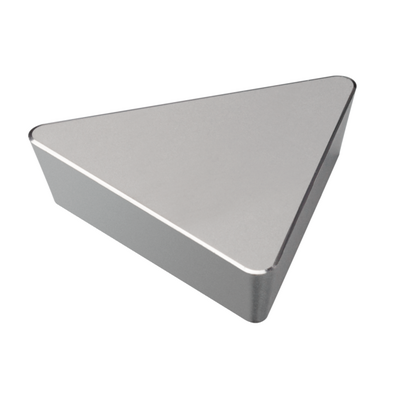

Generic representation
Available
Package quantity: 10
ISO: TPMN 16 03 08 SMA
Material Id: 5755465
EAN: 10234814
ANSI: TPM 322 SMA
Start values (KAPR 90 deg )
P2.1.Z.AN, Hardness: 175 HB
P
fz 0.17 mm (0.1 - 0.2)
hex 0.17 mm (0.1 - 0.2)
vc 180 m/min (200 - 175)
Technical illustrations
Product data
Workpiece material(s)(TMC1ISO)
P
Operation type
(CTPT)
pre-machining with demand on surface
Insert mounting style code (metric)(IFS)
Without fixing hole
Insert size and shape
(CUTINT_SIZESHAPE)
TP1603
Cutting edge count(CEDC)
3
Inscribed circle diameter(IC)
9.525 mm
Insert shape code(SC)
Triangular
Depth of cut maximum
(APMX)
13.3 mm
Corner radius
(RE)
0.8 mm
Major cutting edge angle(KRINS)
90 °
Hand
(HAND)
Neutral
Grade
(GRADE)
SMA
Substrate(SUBSTRATE)
HW
Insert thickness(S)
3.175 mm
Weight of item(WT)
0.0032 kg
Insert seat - metric(SSC_M)
16
Insert seat size code imperial view(SSC_N)
3/8
Release date(ValFrom20)
1/28/85
Release pack id(RELEASEPACK)
85.1
