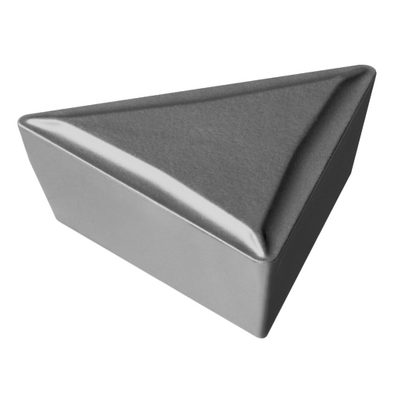

Generic representation
Available within a week
Package quantity: 10
ISO: TPMR 11 03 08-53 5015
Material Id: 5754945
EAN: 10624132
ANSI: TPMR 222-53 5015
Technical illustrations
Product data
Workpiece material(s)(TMC1ISO)
P
K
Chip breaker(CBMD)
53
Operation type
(CTPT)
finishing
Insert mounting style code (metric)(IFS)
Without fixing hole
Insert size and shape
(CUTINT_SIZESHAPE)
TP1103
Cutting edge count(CEDC)
3
Inscribed circle diameter(IC)
6.35 mm
Insert shape code(SC)
Triangular
Cutting edge effective length(LE)
10.1985 mm
Corner radius
(RE)
0.7938 mm
Hand
(HAND)
Neutral
Grade
(GRADE)
5015
Substrate(SUBSTRATE)
HT
Insert thickness(S)
3.175 mm
Clearance angle major(AN)
11 °
Weight of item(WT)
0.0011 kg
Insert seat - metric(SSC_M)
11
Insert seat size code imperial view(SSC_N)
1/4
Release date(ValFrom20)
9/7/92
Release pack id(RELEASEPACK)
02.2
